Fig. 5
From: Fractal charge distribution on closed surfaces generated by finite element triangles

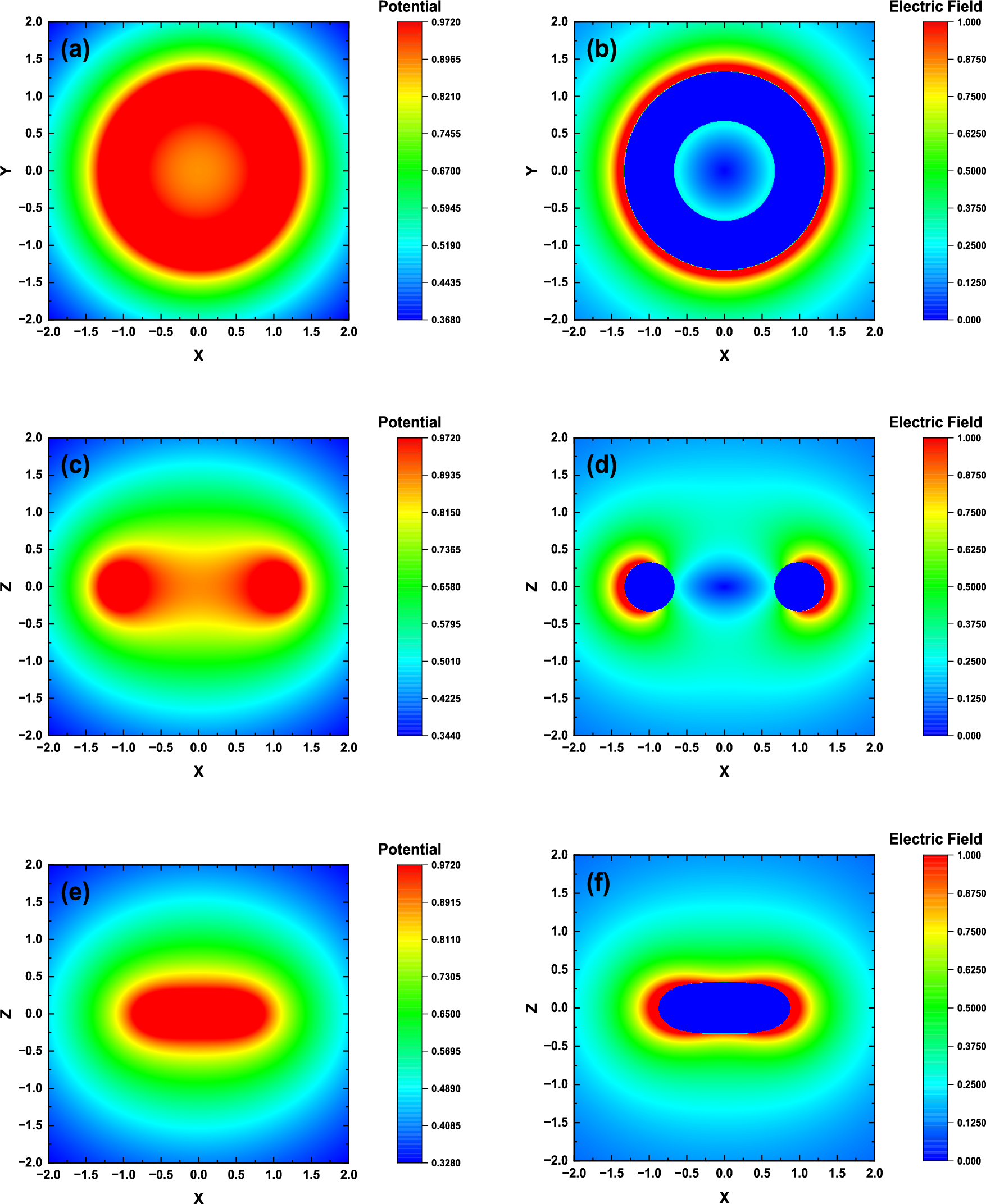

The spatial electric potential (left column) and the electric field strength (right column) distributions for the 9th rank polyhedron of torus on the plane: (a), (b) \(z = 0\); (c), (d) \(y = 0\); (e), (f) \(y = 1\).
