Fig. 8 | Scientific Reports

Fig. 8

From: Research on the surface water quality in the Huaihe River Basin and the gensis based on multivariate statistical analysis

Fig. 8

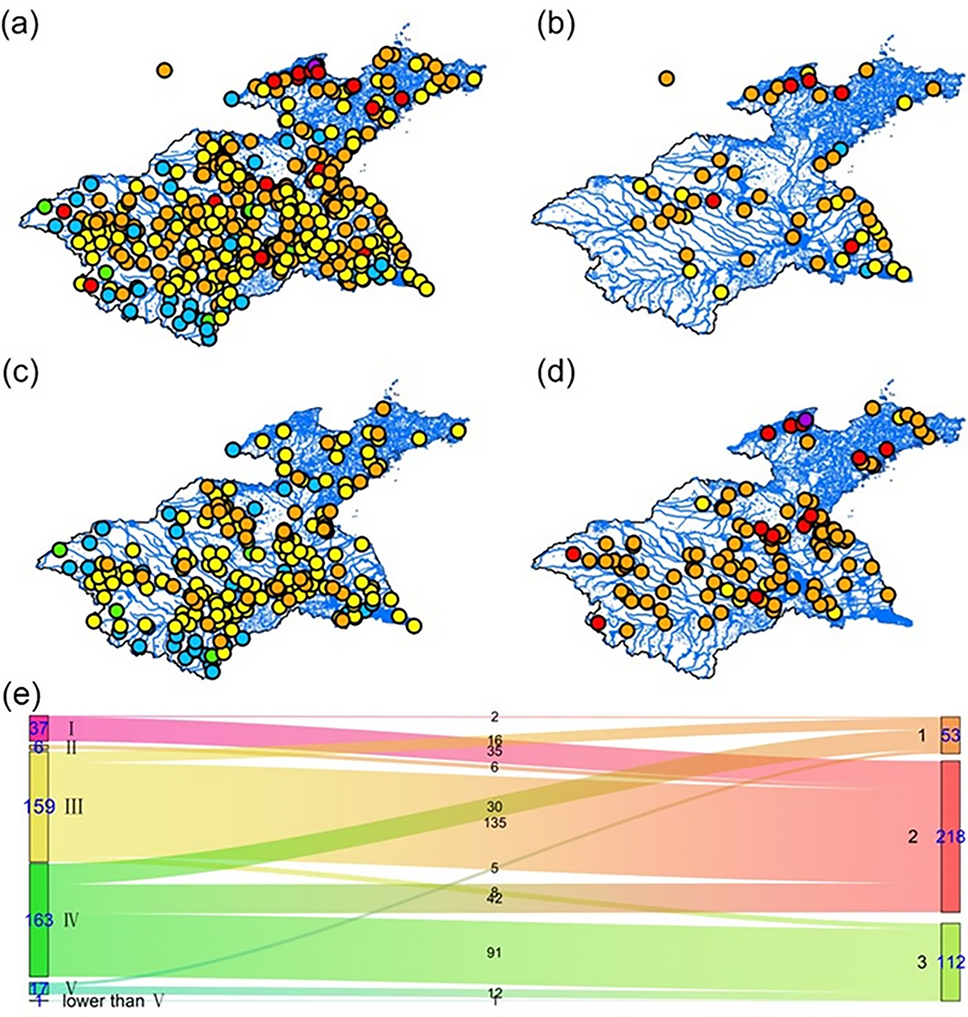

Relationship between surface water quality class and cluster result of monitoring stations (a) surface water quality class of all monitoring stations; (b) surface water quality class of monitoring stations in Cluster 1; (c) surface water quality class of monitoring stations in Cluster 2; (d) surface water quality class of monitoring stations in Cluster 3.
