Fig. 3
From: Sediment mercury and methylmercury dynamics during reservoir operation

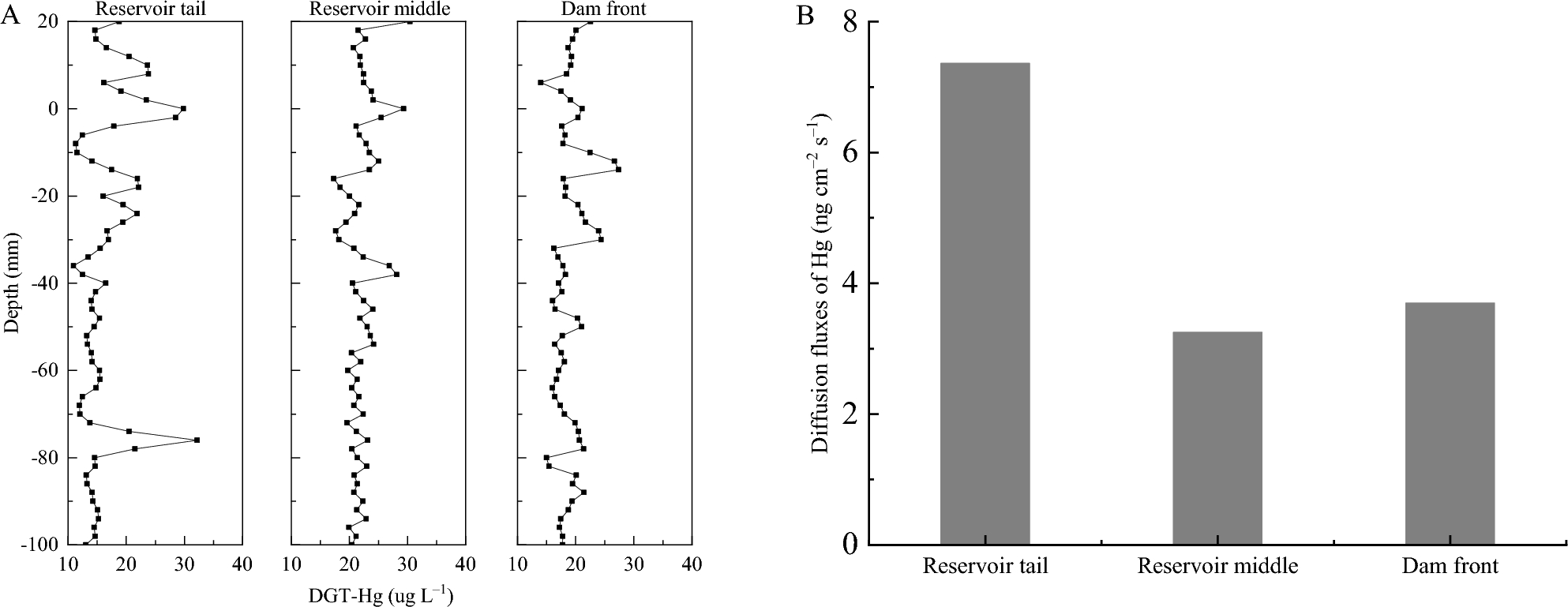

Sediment DGT-Hg content and Hg diffusion flux in the NZD Reservoir. (A) Sediment DGT-Hg content. (B) Diffusive flux of DGT-Hg throughout the sediment–water interface.
