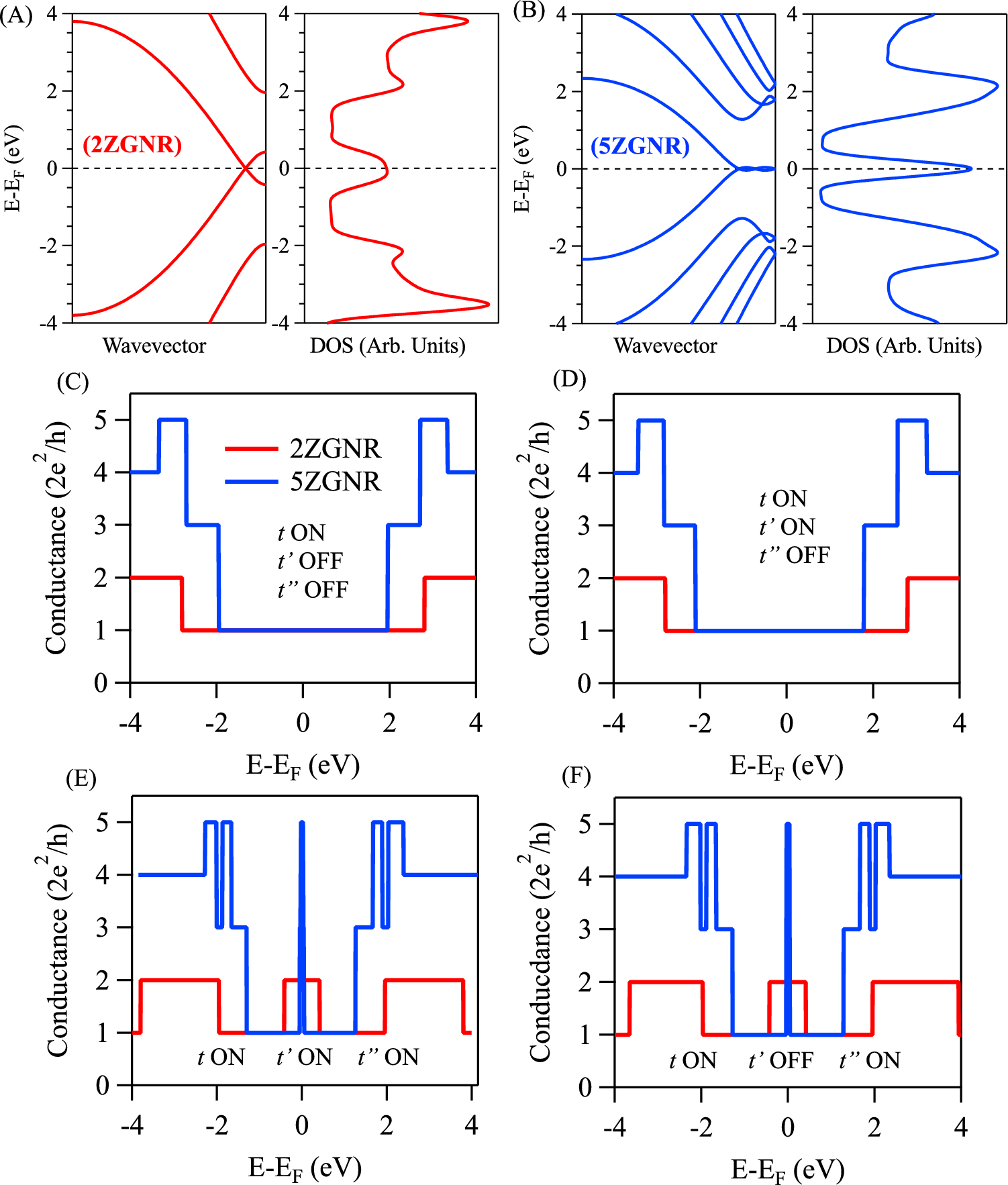

Fig. 2
From: A tight binding study of electron transport in notched graphene nanoribbons
Electronic structure and transport in straight and narrow ZGNRs. (A, B) TB band structures for 2ZGNR (A) and 5ZGNR (B) and the corresponding DOS shown on the right. The three hopping parameters are turned on in these calculations as evident from the observed band braiding effect. (C–F) Comparative conductance spectra between 2ZGNR (red) and 5ZGNR (blue). The conductance spectra were calculated at different situations for the hopping parameters as follows: (C) only the first-nearest neighbour is on; (D) the first- and second-nearest neighbour are on, (E) all hopping parameters are on up to the third-nearest neighbour, and (F) when the first- and third-nearest neighbour are on (the second hopping parameter is off in this case). New conductance channels open up when the third-nearest neighbour is activated.
