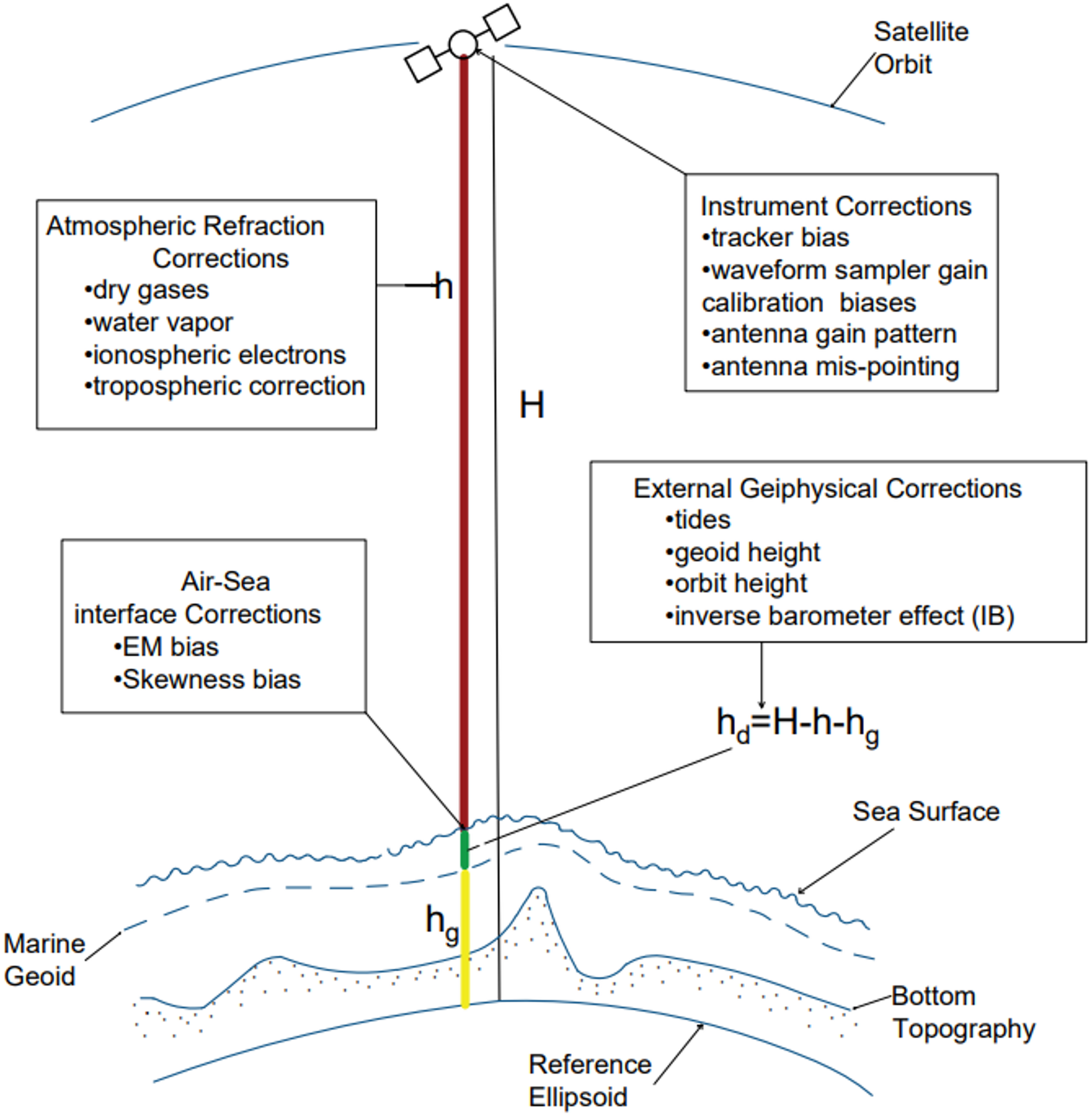

Fig. 5
A visual depiction illustrating the measurements from an altimeter and the necessary corrections to obtain the dynamic sea surface increase, denoted as hd. The altimeter range is represented ash, while H and hg correspond to the orbit geoid height and height, respectively. These values are referenced relative to an ellipsoid approximation of the Earth’s surface, as adapted from the work of96.
