Fig. 5
From: Drosophila melanogaster as a model organism to investigate sex specific differences

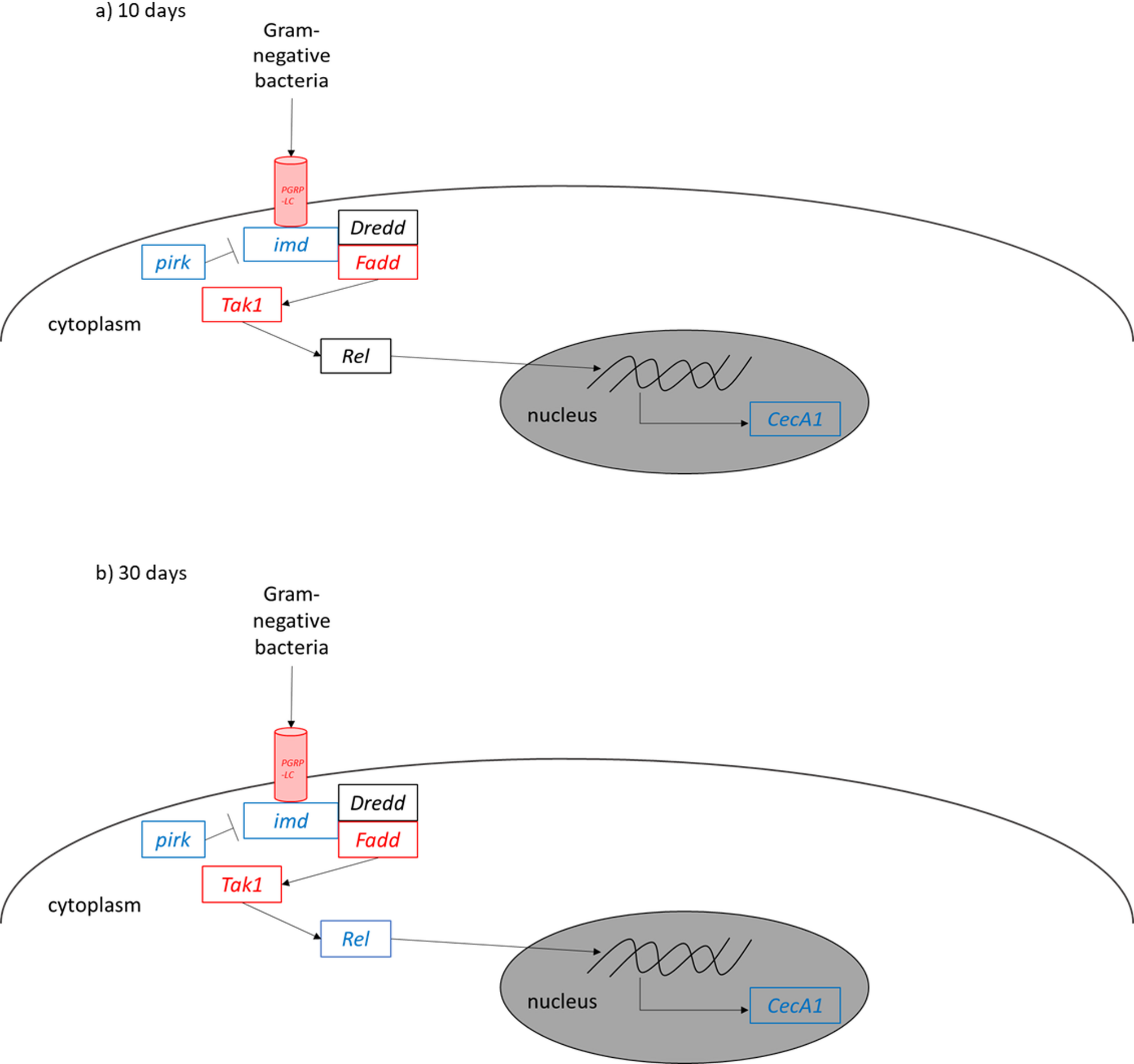

Schematic view of differentially expressed genes of the Imd pathway in 10-day-old (a)) and 30-day-old (b)) flies. Genes highly expressed in females are depicted in red, genes highly expressed in males are depicted in blue, genes that do not show different expression are depicted in black. PGRP-LC: PGN-recognition protein LC; pirk: poor Imd response upon knock-in; imd: immune deficiency; Dredd: Death-related ced-3; Fadd: Fas-associated death domain; Tak1: TGFβ-activated kinase; Rel: Relish; CecA1: CecropinA1.
