Fig. 6
From: Drosophila melanogaster as a model organism to investigate sex specific differences

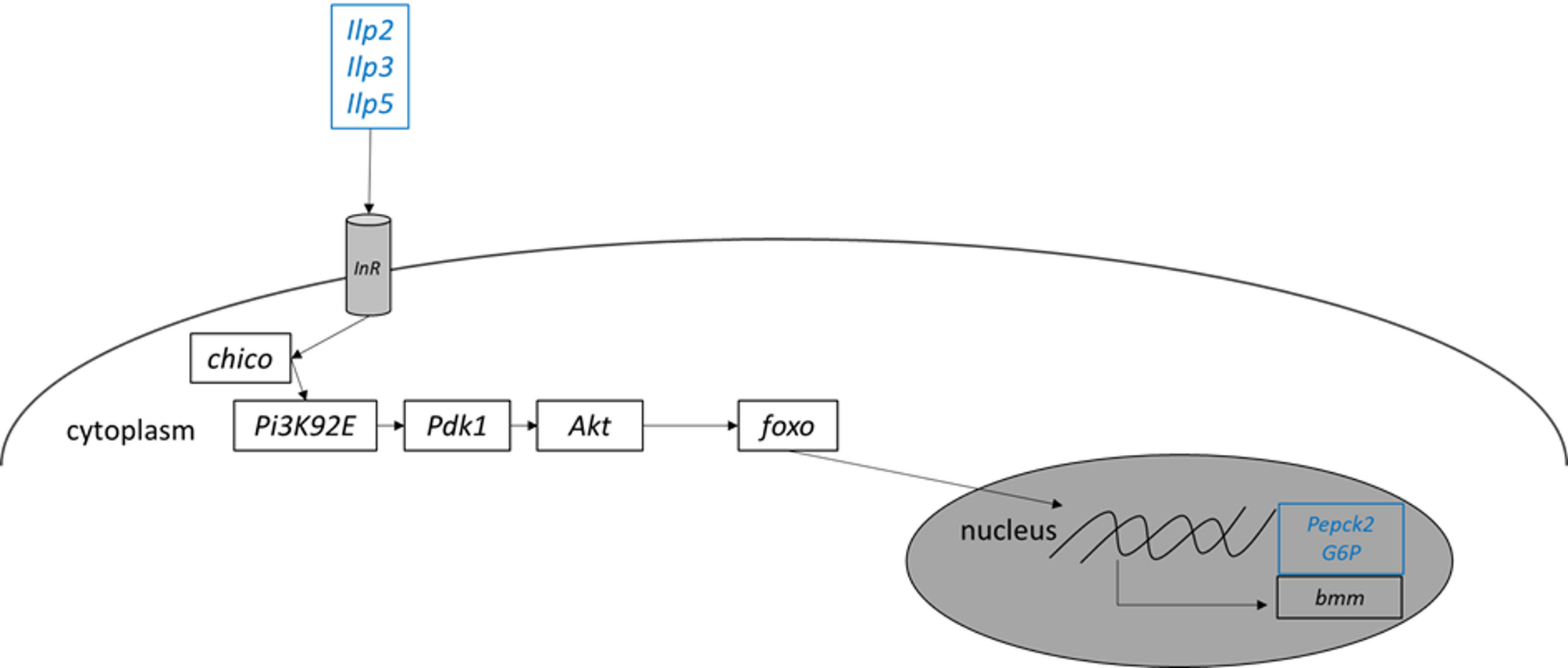

Schematic view of differences in gene expression of insulin signaling in 10-day-old and 30-day-old flies. Genes that are highly expressed in females are depicted in red, genes that are highly expressed in males are depicted in blue, genes that show no different expression are depicted in black. Ilp2/3/5: Insulin-like peptide 2/3/5; InR: Insulin-like receptor; Pi3K92E: phosphoinositid-3-kinase 92E; Pdk1: Phosphoinositide-dependent kinase 1; Akt: Akt kinase; foxo: forkhead box, sub-group O ,Pepck2: Phosphoenolpyruvate carboxy kinase 2; G6P: Flucose-6-Phosphatase; bmm: brummer.
