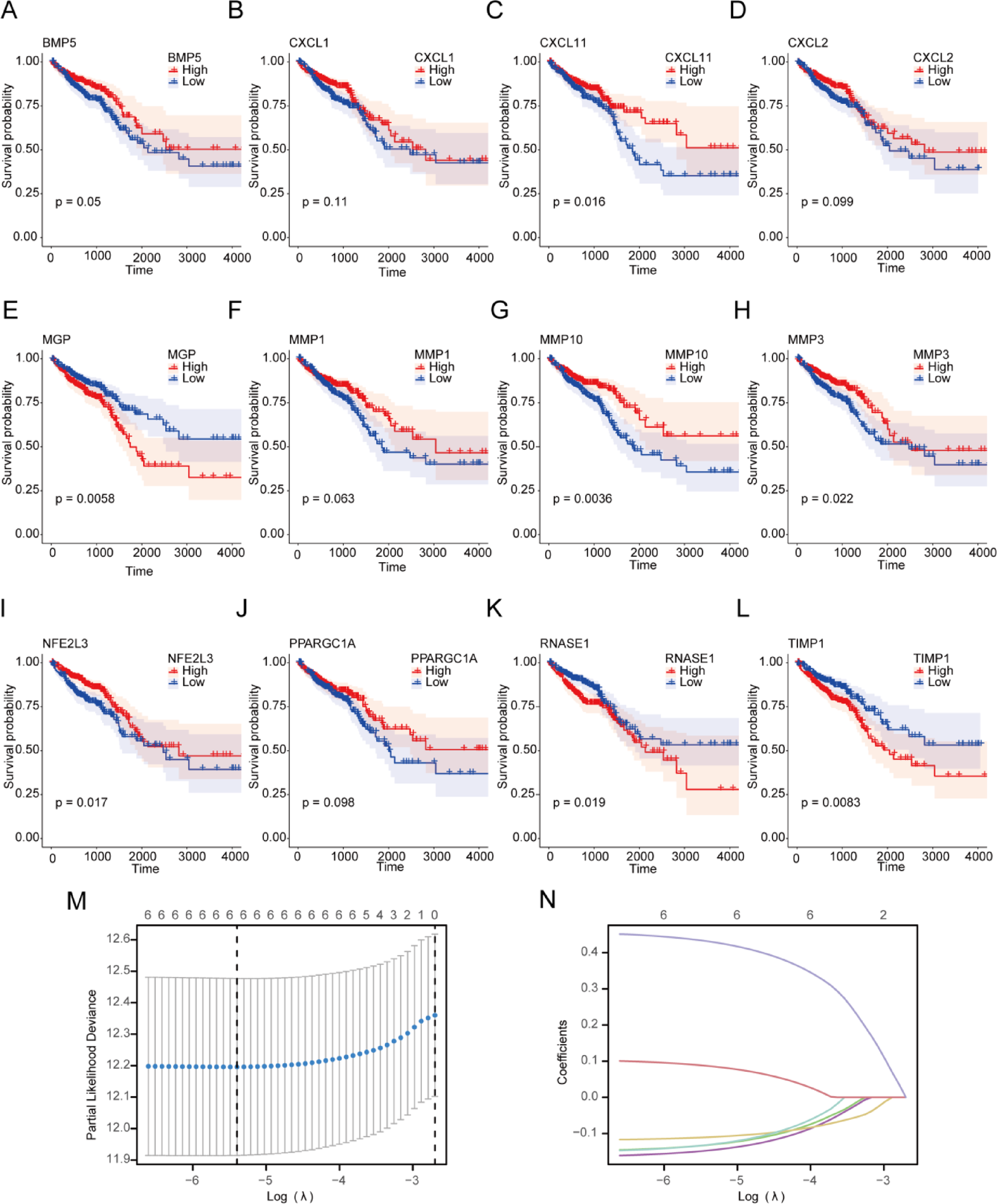

Survival Kaplan–Meier Curve Ff OXSRDEGs. (A–L) The study presents an analysis of 12 Oxidative Stress Related Differentially Expressed Genes (OXSRDEGs), including BMP5 (A), CXCL1 (B), CXCL11 (C), CXCL2 (D), MGP (E), MMP1 (F), MMP10 (G), MMP3 (H), NFE2L3 (I), PPARGC1A (J), RNASE1 (K), and TIMP1 (L)). (M, N) It showcases a prognostic model based on the results of LASSO regression analysis of OXSRDEGs (M) and a variable trajectory diagram (N). OXSRDEGs stand for Oxidative Stress Related Differentially Expressed Genes; KM represents Kaplan–Meier survival analysis; LASSO denotes the Least Absolute Shrinkage and Selection Operator technique.
