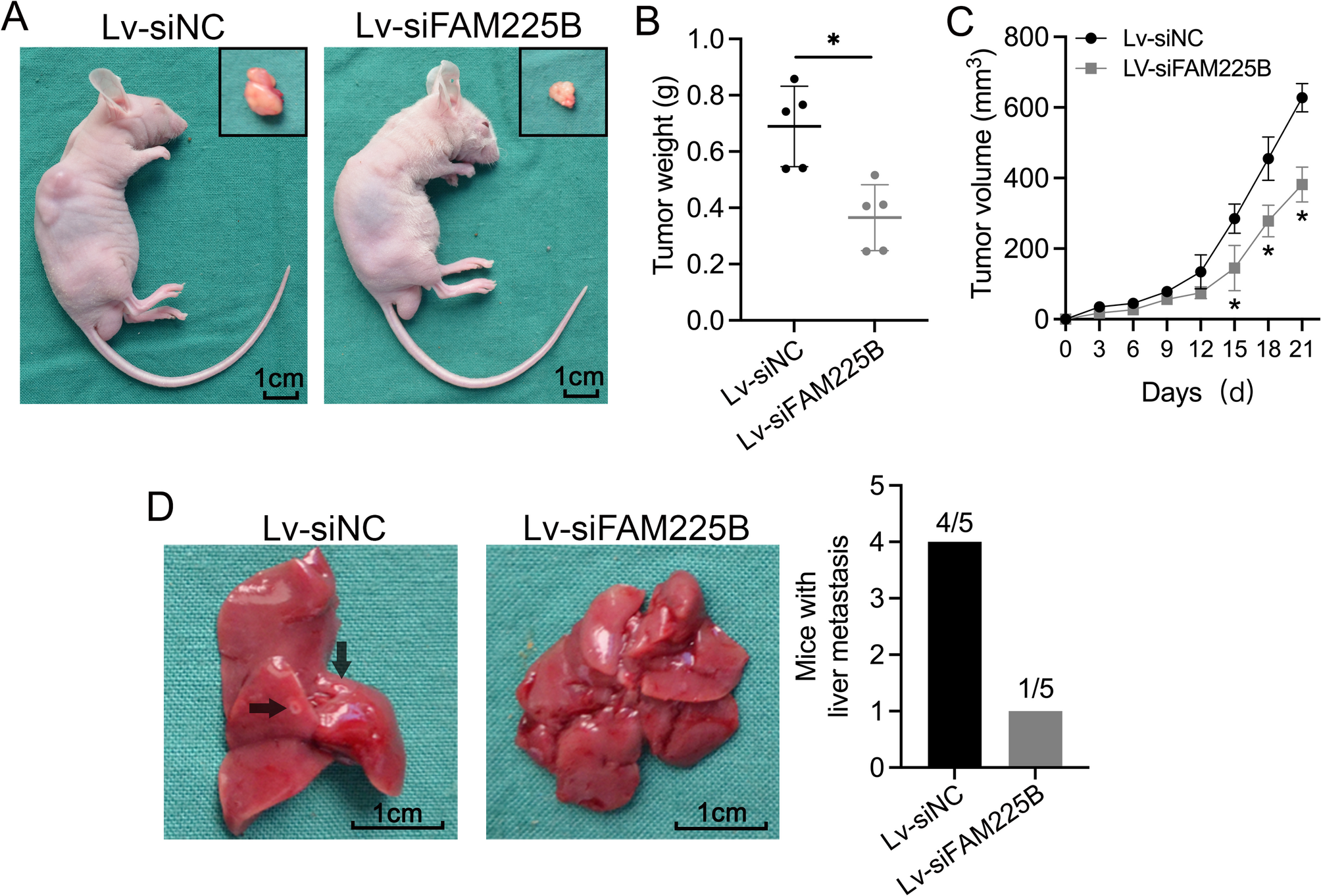

Fig. 9
From: Lactate-related lncRNAs assessment model predicts the prognosis of pancreatic ductal adenocarcinoma
Knockdown of FAM225B inhibits xenograft tumor growth and metastasis. (A) Representative photographs of nude mice bearing subcutaneous xenograft tumors derived from PANC-1 cells transfected with Lentivirus containing FAM225B siRNA (Lv-siFAM225B) or negative control (Lv-NC). (B) Tumor weight recorded after sacrifice of the mice. (C) Tumor volume measured every 3 days during the experiment using the formula 0.5 * L (length) * W^2 (width). (D) Representative photographs of liver metastases in nude mice with subcutaneous xenografts. The histogram shows the number of mice with liver metastases in each group.
