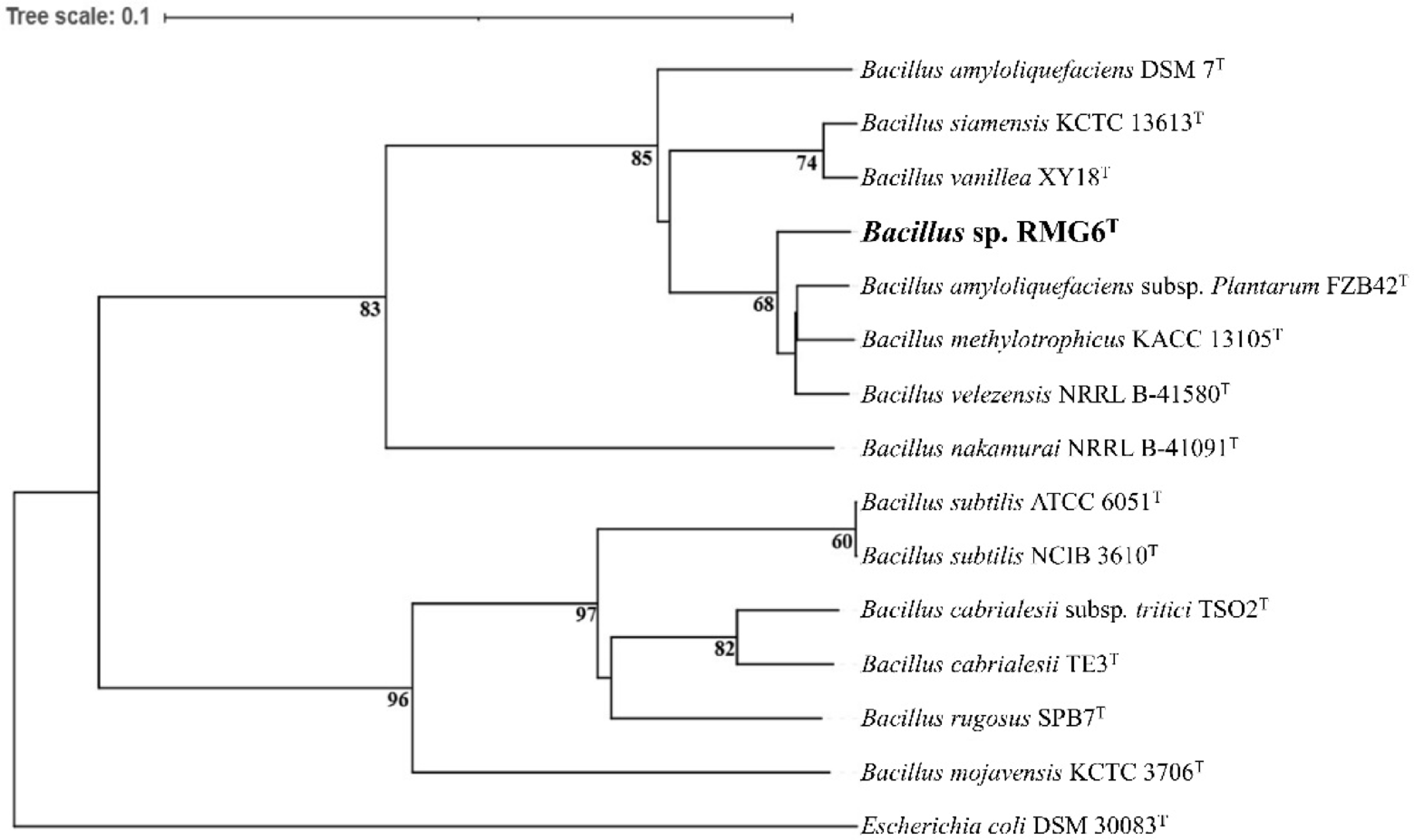

Fig. 11
Whole-genome phylogenetic tree produced with TYGS. 14 strains were automatically chosen using TYGS with GGDC. E. coli DSM 30,083 was included as an outgroup and the tree is rooted on this branch. Mean branch support is 65.8%, and bootstrap data is shown as a percent for each branch. δ statistics = 0.039–0.13. Excluding the outgroup: G + C 43.12–46.63 mol%, genome size 3.6–4.5 Mb, number of proteins 3622–4511. The branch lengths are scaled in terms of the GBDP distance formula d5.
