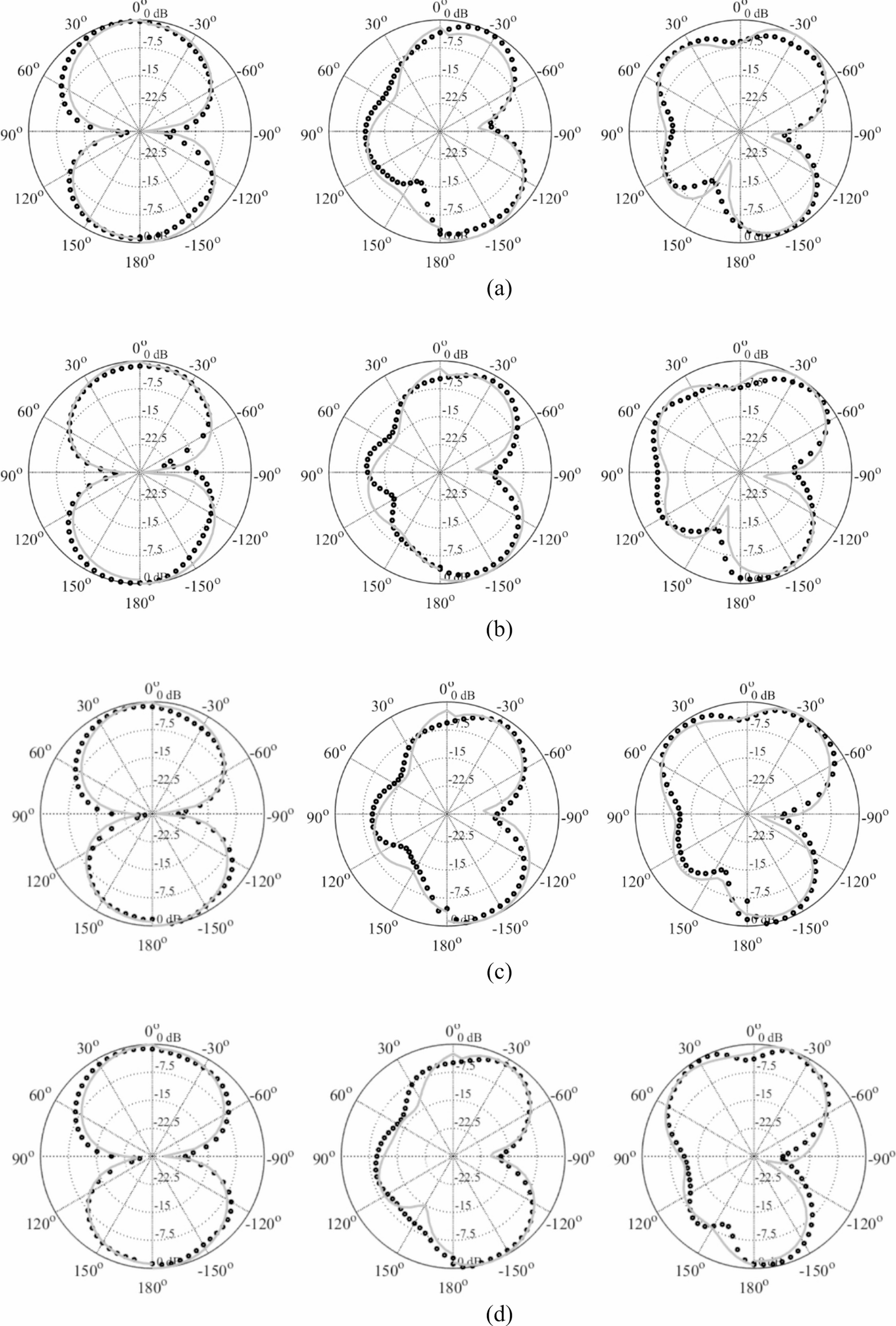

Fig. 22

E-plane radiation patterns: simulations (grey) and measurements (black) for 4 GHz (left), 6 GHz (middle), and 8 GHz (right) of Pareto-optimal solutions of Antenna III generated by the introduced approach: (a) Design 1, (b) Design 2, (c) Design 3, (d) Design 4.
