From: Diagnosis of deep vein thrombosis from γ-butylbetaine and l-carnitine in plasma and urine based on untargeted and targeted metabolomics

Fig. 6

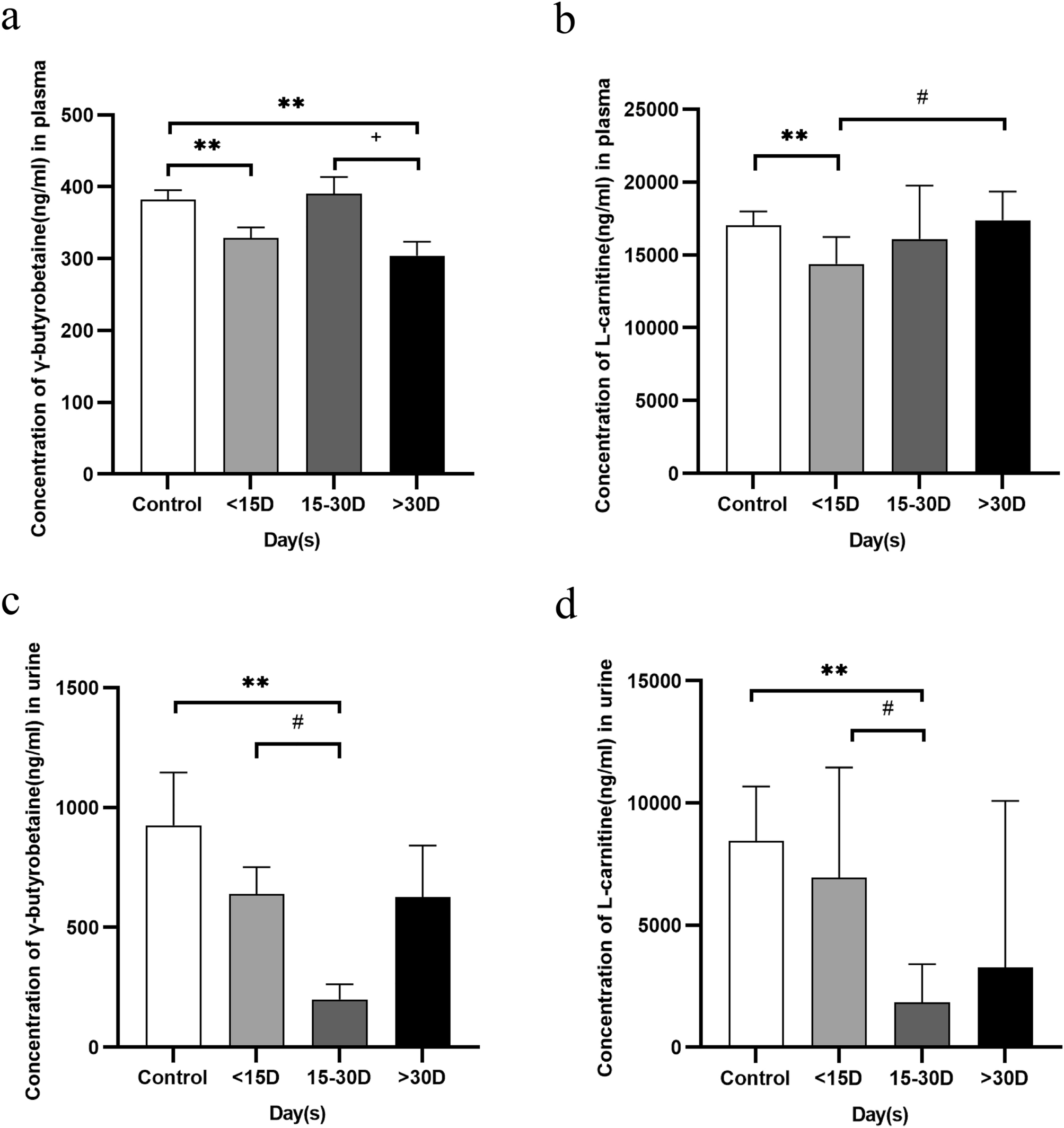

γ-Butylbetaine (GBB) and l-carnitine (L-CN) concentration levels in plasma and urine of patients with deep vein thrombosis (DVT) at different times. (a, b) Plasma GBB and L-CN levels in the control, acute, subacute, and chronic groups. (c, d) Urinary GBB and L-CN levels in the control, acute, subacute, and chronic groups. ***P < 0.001,**P < 0.01,*P < 0.05; ###P < 0.001, ##P < 0.01, #P < 0.05; +++P < 0.001, ++P < 0.01, +P < 0.05.
