From: Impaired intestinal calcium absorption and osteopathy in ICR/Mlac-hydro mice with hypoparathyroidism and severe hydronephrosis

Fig. 5

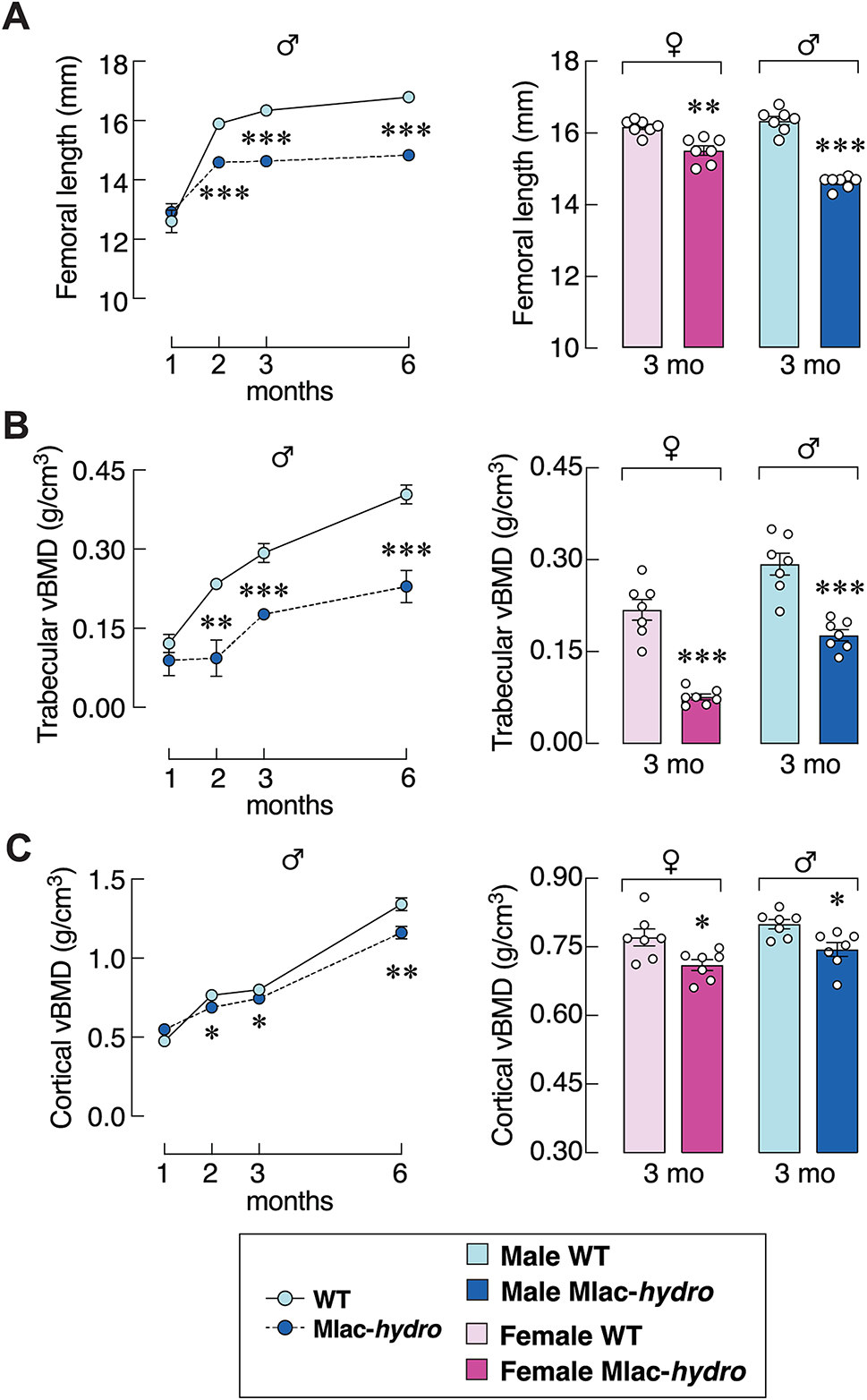

(A) Femoral length, (B) trabecular and (C) cortical volumetric bone mineral density (vBMD) in 1-, 2-, 3- and 6-month-old male ICR/Mlac-hydro mice (Mlac-hydro) and wild-type mice (WT) analyzed by ex vivo µCT. Femoral length, trabecular and cortical vBMD of 3-month-old female and male mice are shown on the right panels. n = 7; *P < 0.05, **P < 0.01, ***P < 0.001 vs. age-matched WT control group.
