Fig. 7 | Scientific Reports

Fig. 7

From: Impaired intestinal calcium absorption and osteopathy in ICR/Mlac-hydro mice with hypoparathyroidism and severe hydronephrosis

Fig. 7

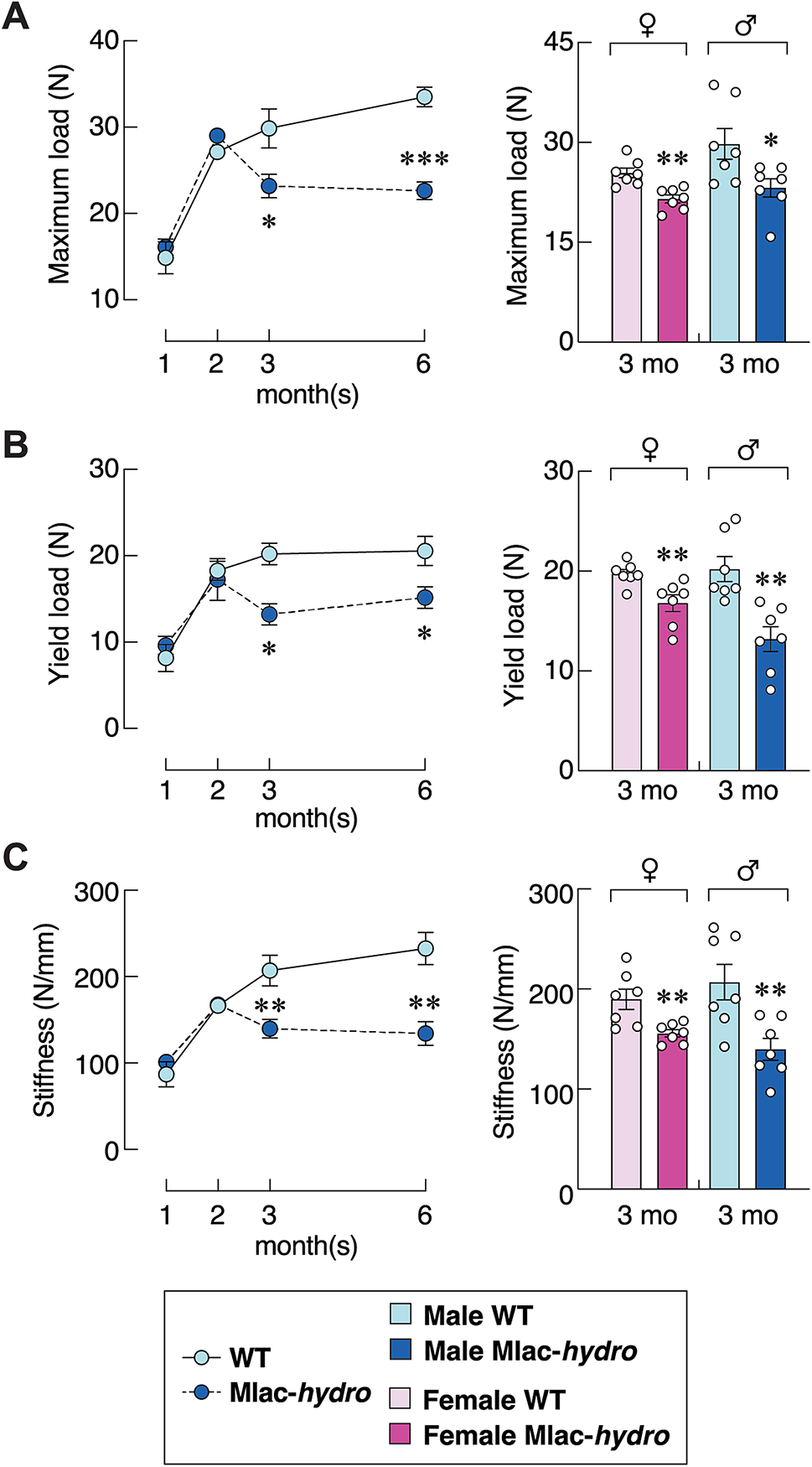

Femoral mechanical properties, i.e., (A) maximum load, (B) yield load, (C) stiffness in 1-, 2-, 3- and 6-month-old male ICR/Mlac-hydro mice (Mlac-hydro) and wild-type mice (WT) analyzed by 3-point bending test. Maximum load, yield load, and stiffness of 3-month-old female and male mice are shown on the right panels. n = 7; *P < 0.05, **P < 0.01, ***P < 0.001 vs. age-matched WT control group.
