Figure 7
From: Modeling the formation of Sedan Crater using the FLAG and HOSS codes

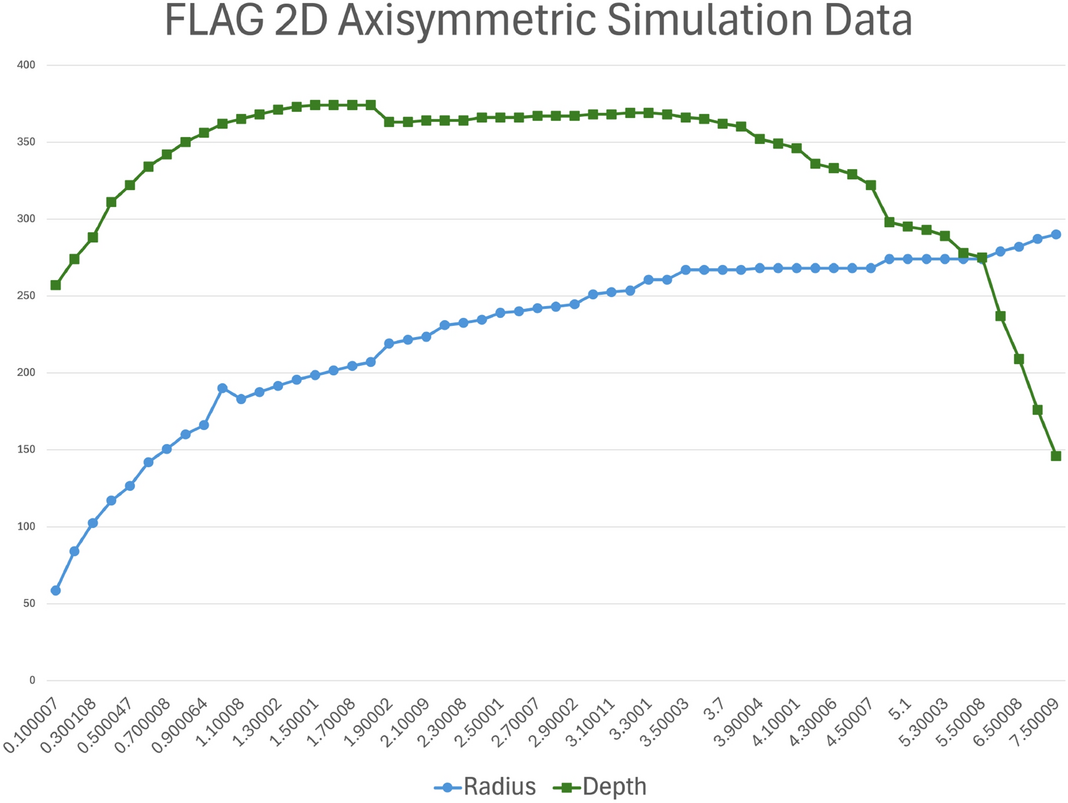

Cavity/crater depth and radius over time for 2D axisymmetric FLAG simulations. The mound ruptured about 2.9 s after detonation in the simulation, at which point the cavity became an open crater. Plot created using Microsoft Excel for Microsoft 365 MSO (Version 2503 Build 16.0.18623.20266) 64-bit. (https://www.microsoft.com/en-us/microsoft-365/excel).
