Fig. 5

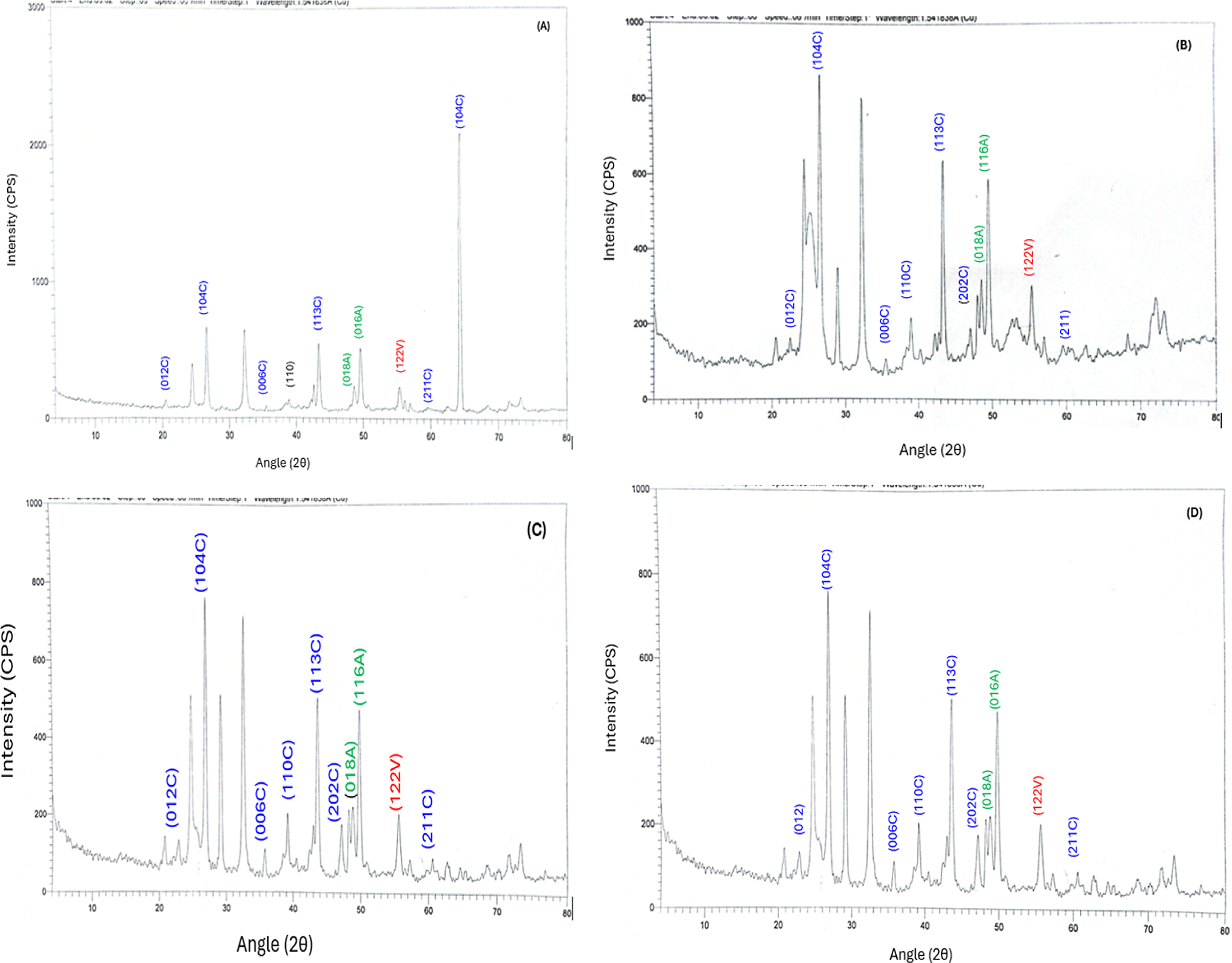

XRD pattern of Calcium Carbonate (A): acetate, (B): citrate, (C): chloride, (D): nitrate. X-ray diffraction patterns of calcite CaCO₃, vaterite CaCO₃ and aragonite CaCO₃ polymorphs obtained by biomineralization of Bacillus subtilis culture after 5 days of exposure.
