Fig. 5 | Scientific Reports

Fig. 5

From: Structural and phylogenetic comparisons of the complete mitochondrial genomes among taxa in genus Toona

Fig. 5

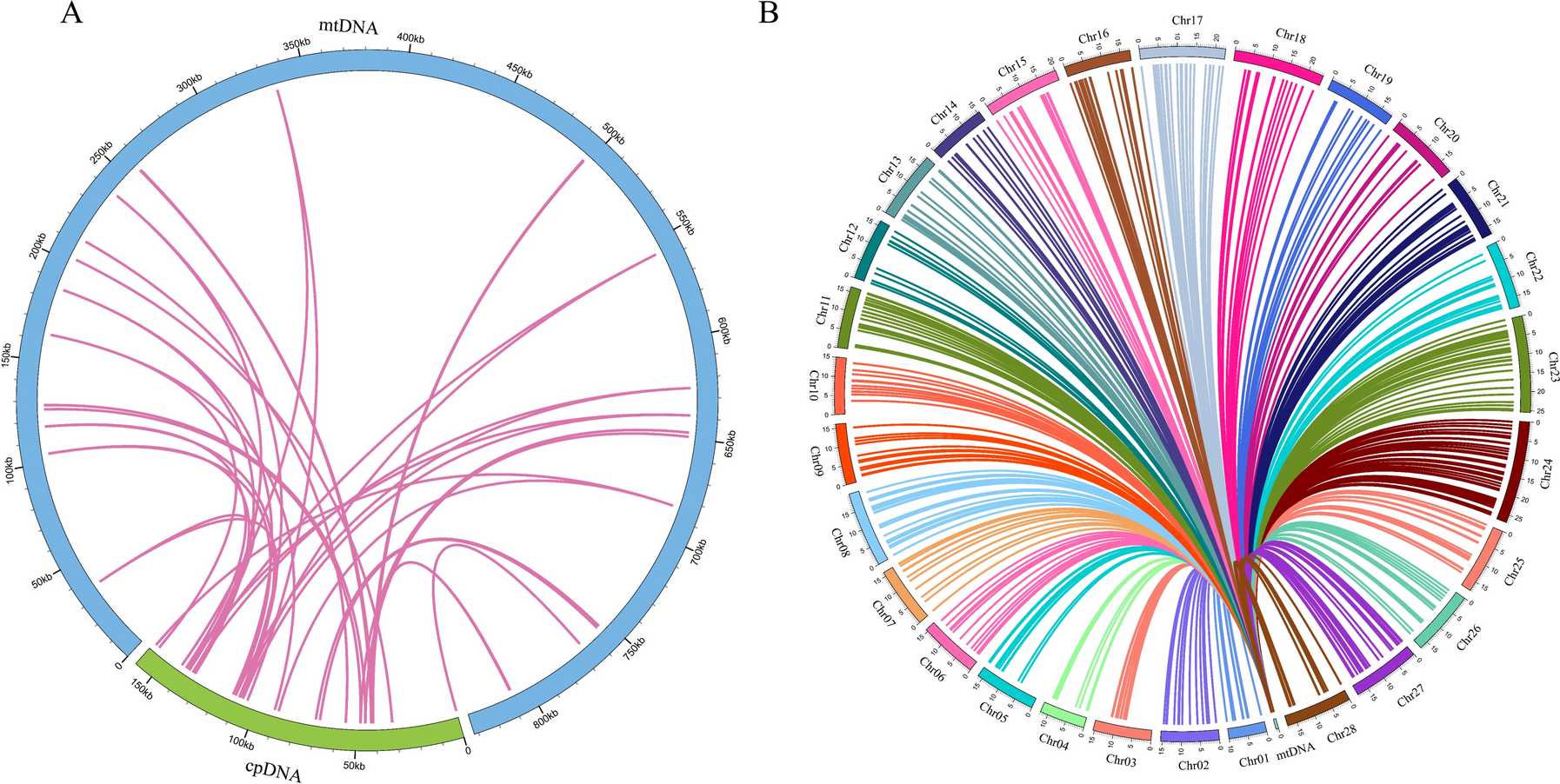

Intracellular homologous comparisons. (A) Homology between chloroplast and mitochondrial genomes of T. ciliata var. yunnanensis 1. The mitochondrial genome is showed in blue and the chloroplast genome in green. The pink arcs represent homologous sequences; (B) Homology between the mitochondrial genome of T. ciliata var. yunnanensis 1 and the nuclear genome of T. ciliata. The homologous sequences were indicated in arcs in different colors.
