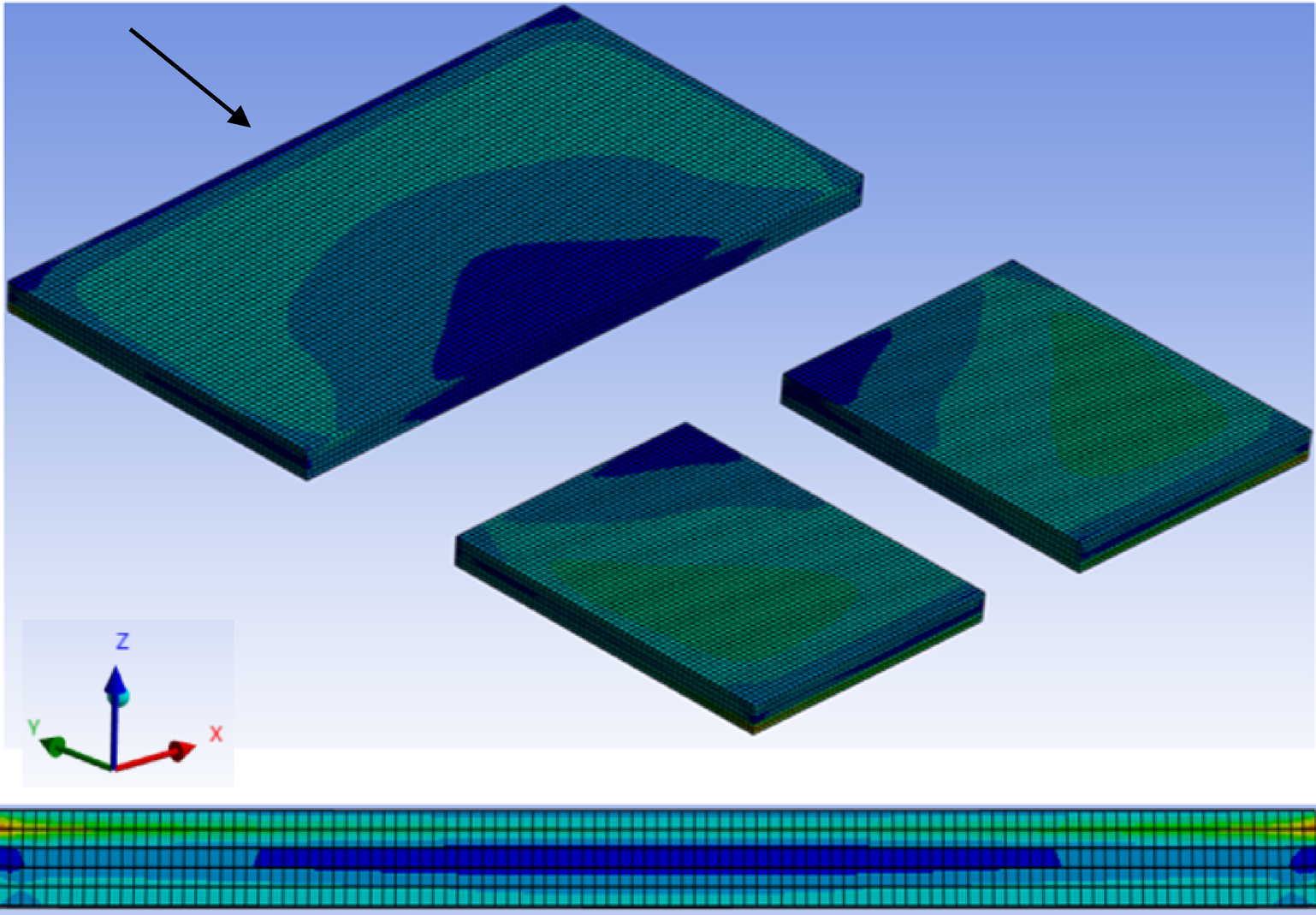

Fig. 4
From: AI-driven point cloud framework for predicting solder joint reliability using 3D FEA data
Full View of 3 Pad LED package showing unsymmetrical stress distribution for FCGB1 package along with the 5 elements across the solder thickness each with 15 μm (thermal pad side view as shown by arrow).
