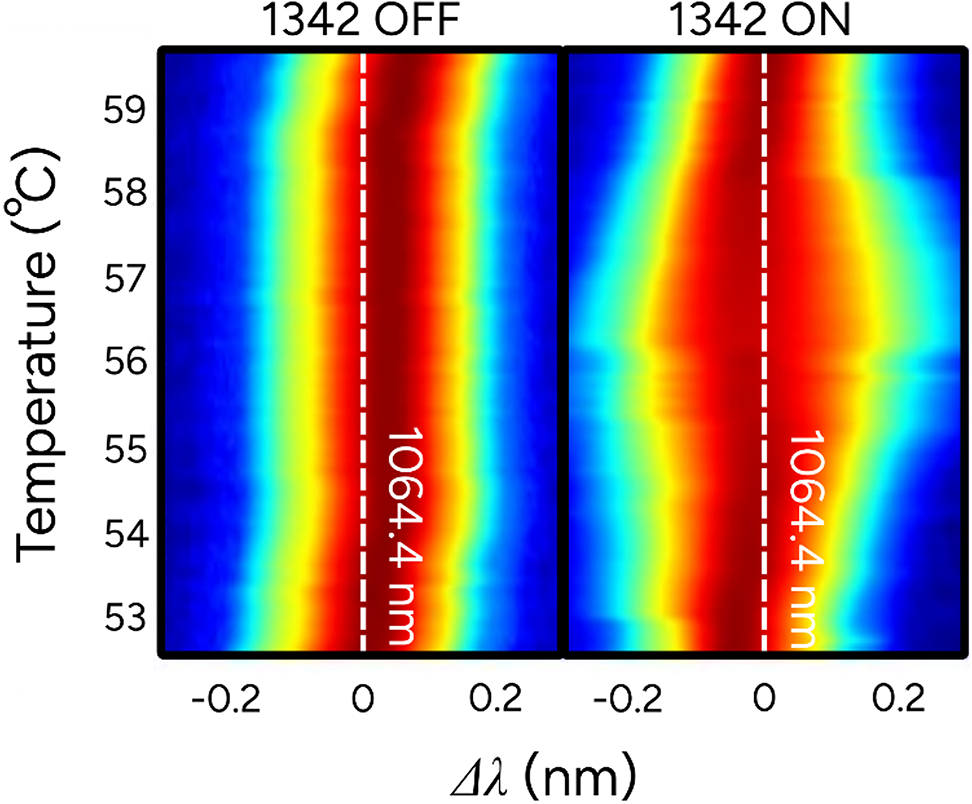

Fig. 5
From: Generation of picosecond pulses using soliton compression in a dual cavity laser
Spectrum is measured using an OSA for different temperatures of the KTP crystal, where \(\:{\Delta\:}\lambda\:\) shows the deviation from the center wavelength line at 1064.4 nm. Two cases are shown, one where the 1342 nm arm is turned off and one when it is on.
