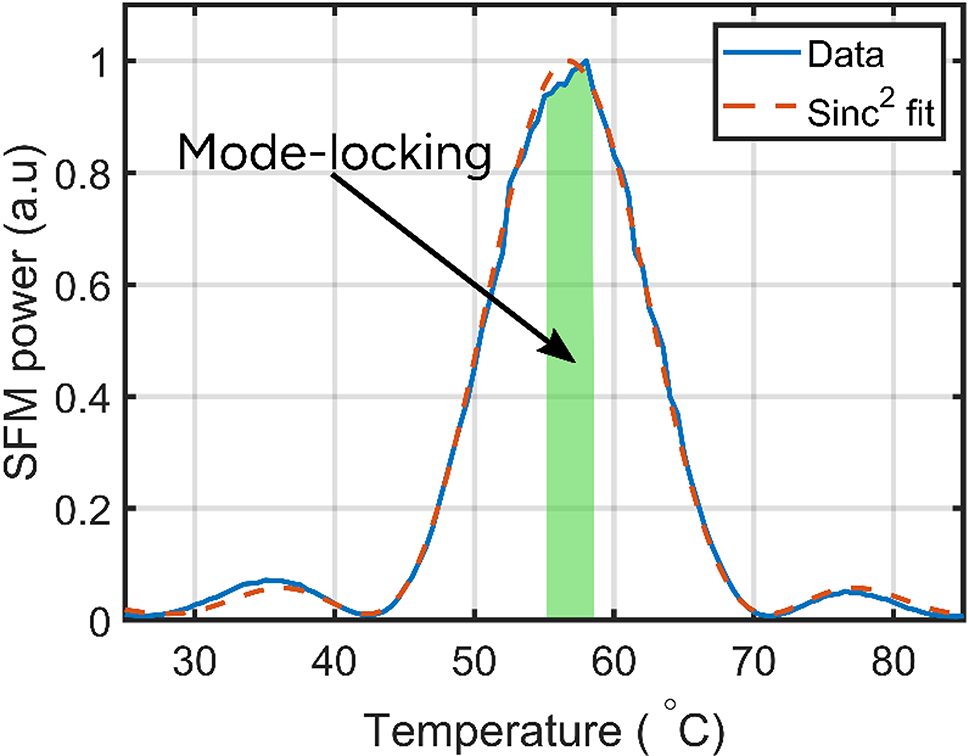

Fig. 6
From: Generation of picosecond pulses using soliton compression in a dual cavity laser
SFM phase matching curve of the intra-cavity KTP crystal used in this study. The green region indicates the temperature range where cascaded mode-locking successfully self-started.
