Fig. 1

From: Single-cell RNA-seq analysis of mouse carotid artery under disturbed flow and human carotid plaques identifies key cell populations in atherosclerosis development

Fig. 1

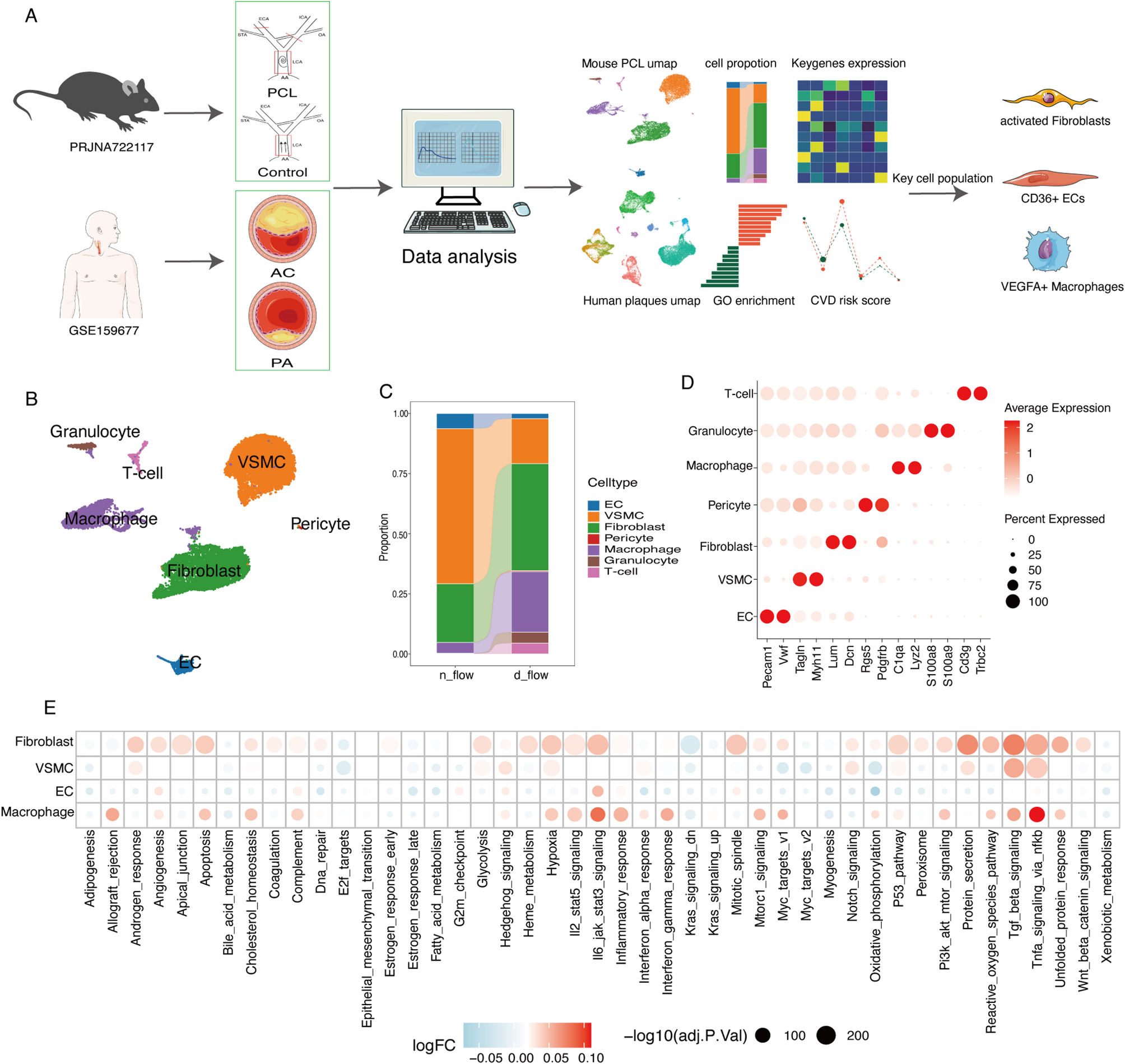

Identification of main cell types in the mouse carotid artery. (A) Schematic graph of single-cell RNA sequencing and data analysis pipeline. (B) Uniform manifold approximation and projection (UMAP) representation of the landscape of different cell types. (C) Stacked barplot of the proportions of cell types in different groups. (D) Dotplot showing average expression of known markers in main cell types. (E) Dot plot showing differentially enriched pathways in the global cell type between d-flow and n-flow datasets.
