Fig. 9 | Scientific Reports

Fig. 9

From: Analysis and implementation of variable frequency controlled dynamic wireless charging system with half-bridge multi-leg converter topology

Fig. 9

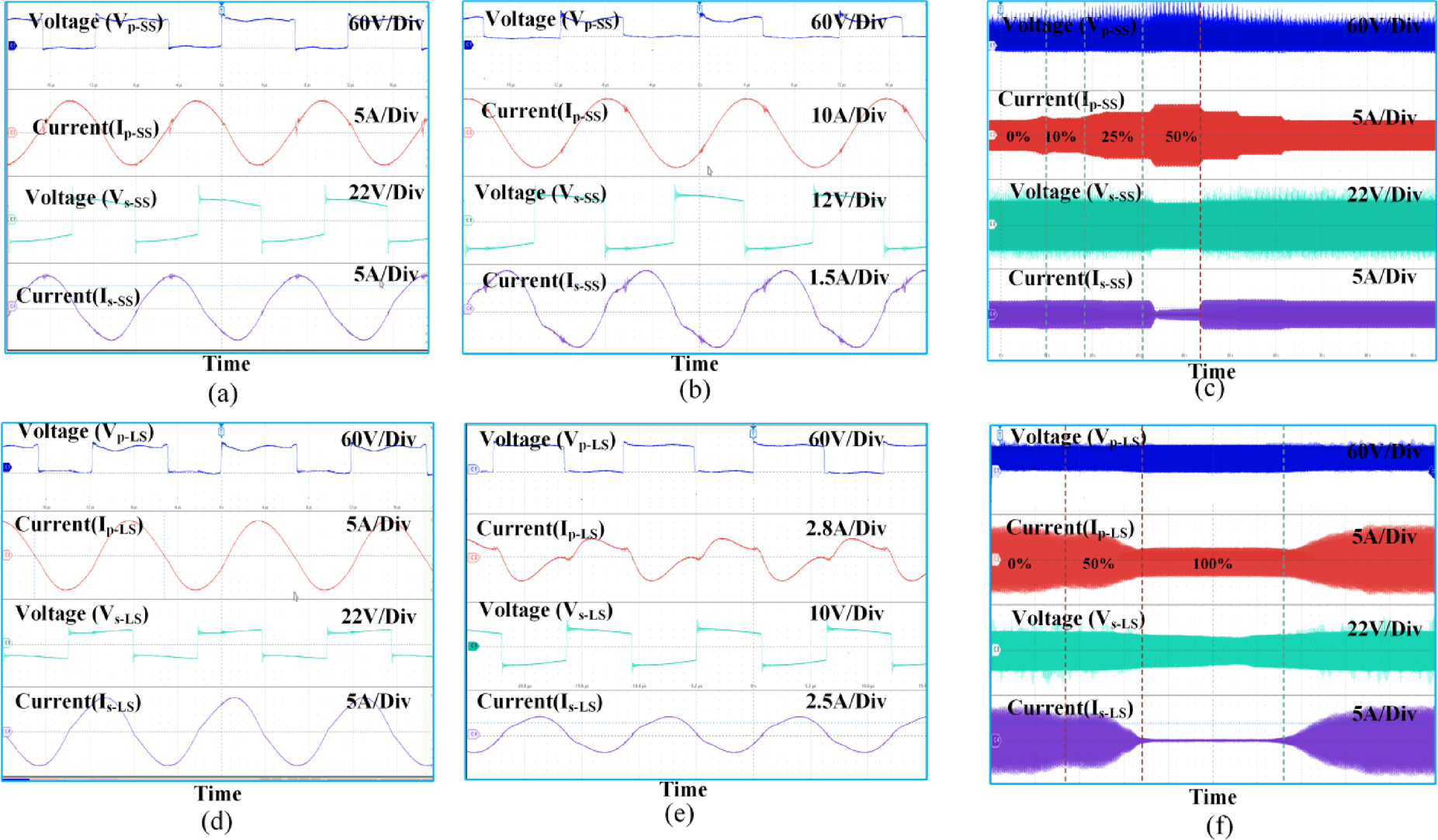

The hardware results are as follows, from top to bottom: the input voltage, followed by the input current of the primary resonant tank, the input voltage, and the input current to the bridge rectifier. (a) at full alignment for SS compensation, (b) at 50% SS compensation, (c) Different misalignment for SS compensation (d) fully alignment for LCC-S compensation, (e) 50% for LCC-S compensation, and (f) Different misalignment for LCC-S compensation (Results taken for Tx and Rx: Square).
