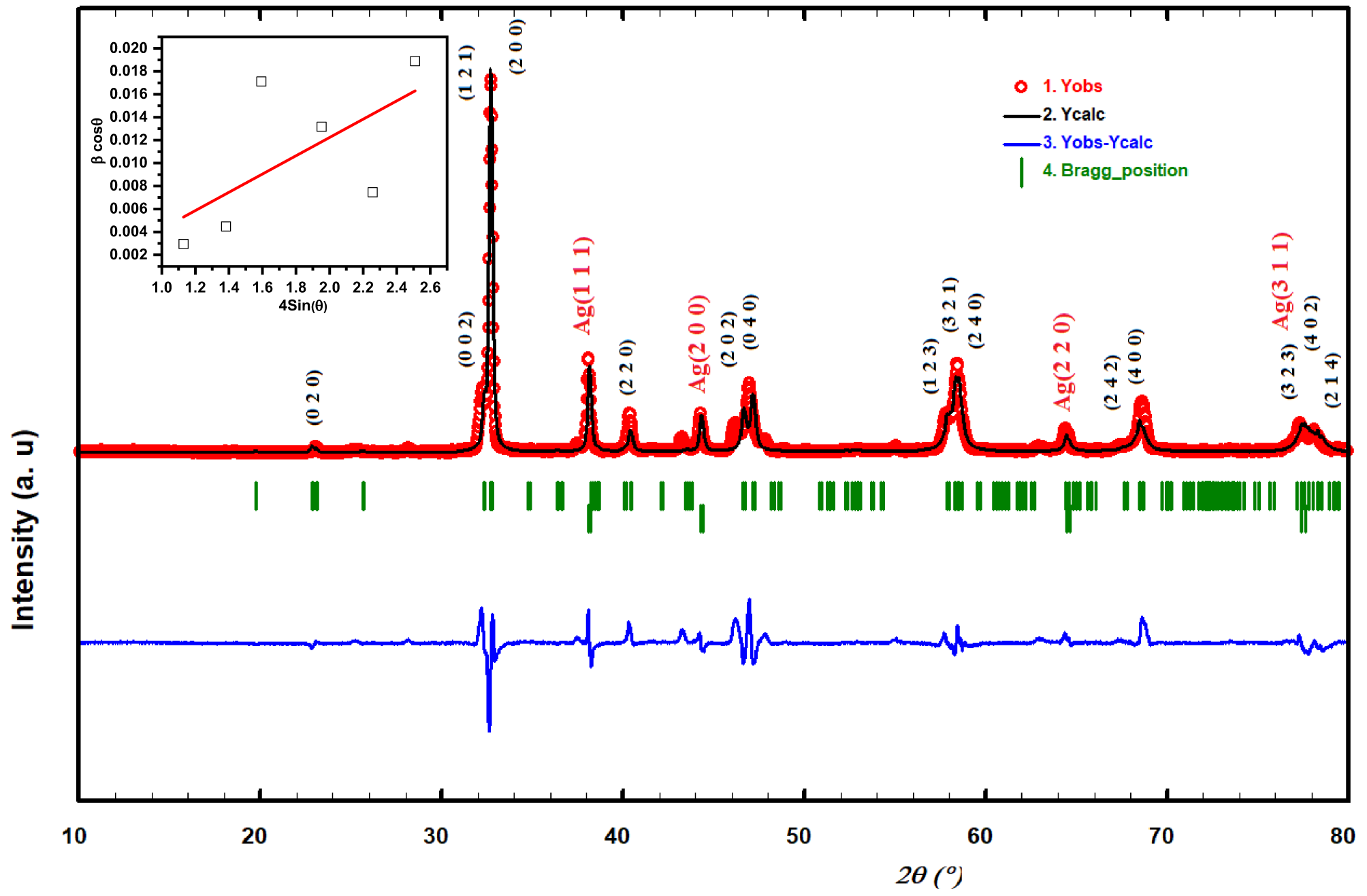

Fig. 2

Rietveld refinement XRD patterns of the present composite and the diffraction peaks with stars are attributed to the metallic Ag as well as the inset displays the plot of βcosθ against 4sinθ for Sr_0.85Ag_0.15FeO_3−δ perovskite.
