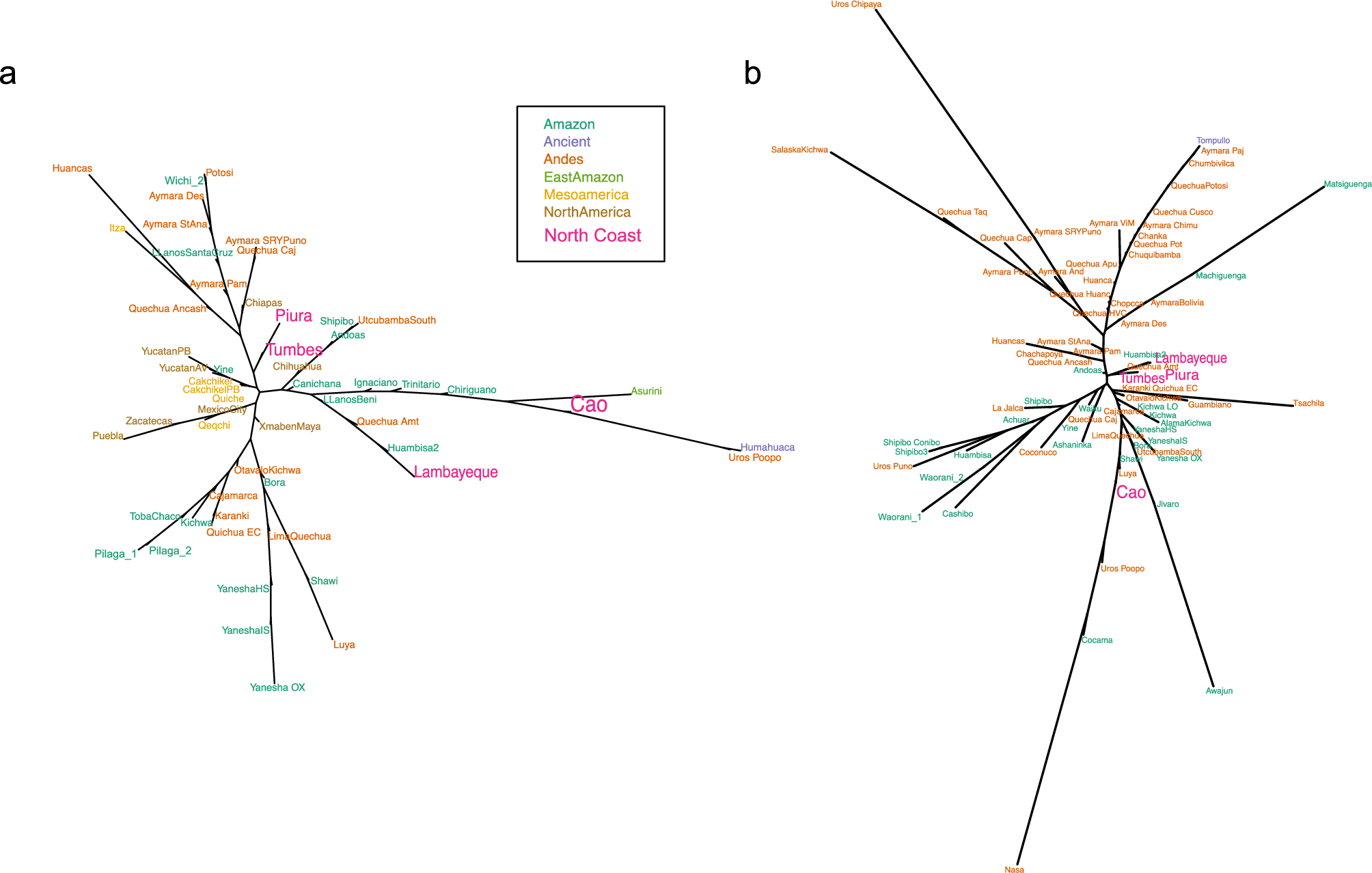

Fig. 3
From: Human population history on the North Coast of Peru from Y chromosomes and mitogenomes
NJ trees from RST distances calculated with 17 STR loci. North Coast populations are highlighted with a larger font. (A). subset of all the populations from the continental dataset, including those with an RST < 0.03 to each North Coast population. (B). subset of the populations from the Central Andes of Western South America, as included on the map in Fig. 1A.
