Fig. 7

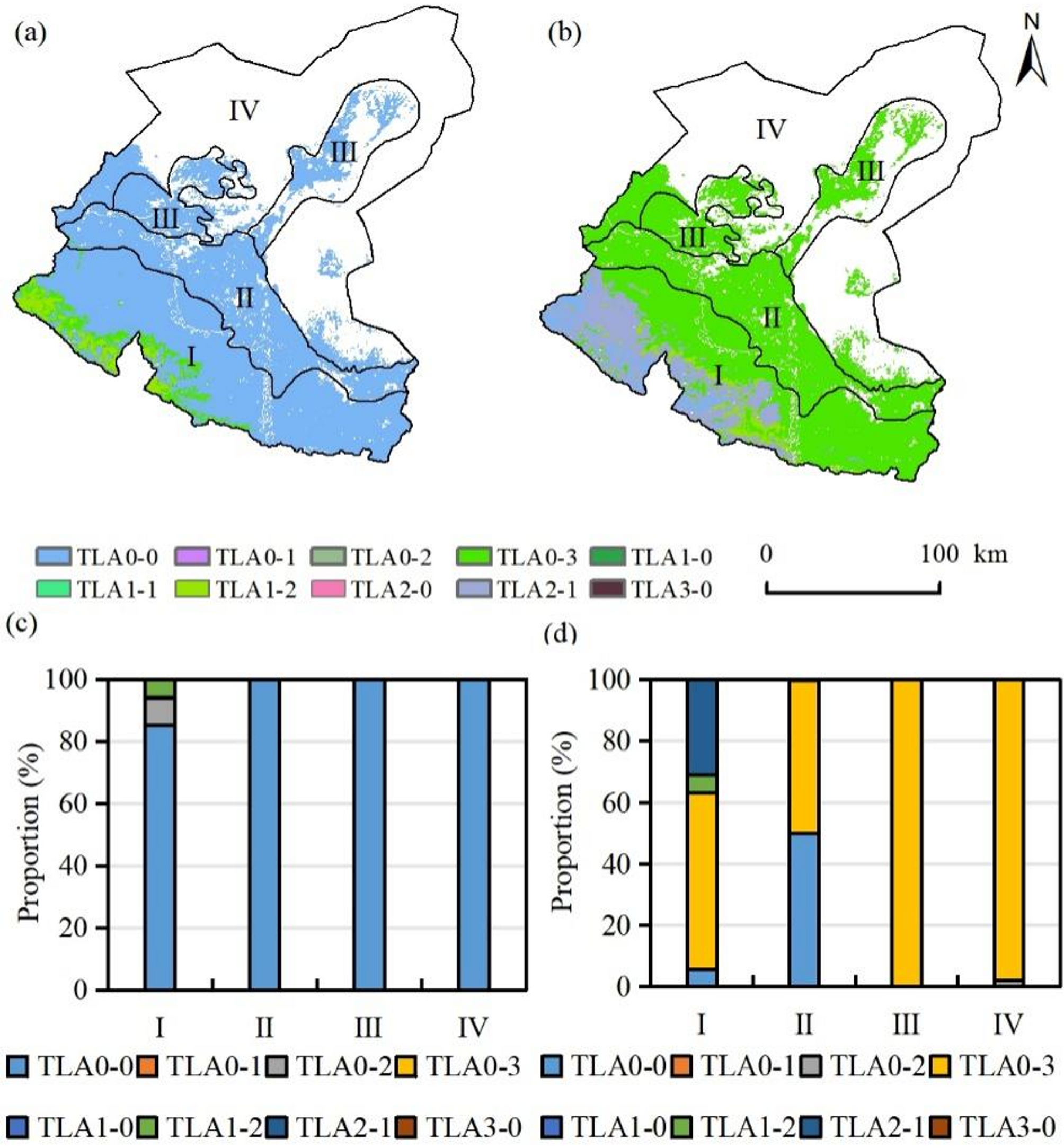

The lag and cumulative response of WUE in the SRB to temperature and precipitation. (a) The lag and cumulative response of WUE to average temperature; (b) The lag and cumulative response of WUE to precipitation; (c) The proportion of different lag and cumulative response areas of WUE in each ecological functional area to average temperature; (d) The proportion of different lag and cumulative response areas of WUE in different ecological functional zones to precipitation. Note: (TLA i-j means that the lag and accumulation months are i and j months, respectively.) TLA0-0 (0 months lag 0 months cumulative), TLA0-1 (0 months lag 1 month cumulative), TLA0-2 (0 months lag 2 months cumulative), TLA0-3 (0 months lag 3 months cumulative), TLA1-0 (1-month lag 0 months cumulative), TLA1-1 (1-month lag 1 month cumulative), TLA1-2 (1-month lag 2 months cumulative), TLA1-3 (1-month lag 3 months cumulative), TLA2-0 (2 months lag 0 months cumulative), TLA2-1 (2 months lag 1 month cumulative), TLA2-2 (2 months lag 2 months cumulatively, TLA2-3 (2 months lag 3 months cumulative), TLA3-0 (3 months lag 0 months cumulative), TLA3-1 (3 months lag 1 month cumulative), TLA3-2 (3 months lag 2 months cumulative), TLA3-3 (3 months lag 3 months cumulative).
