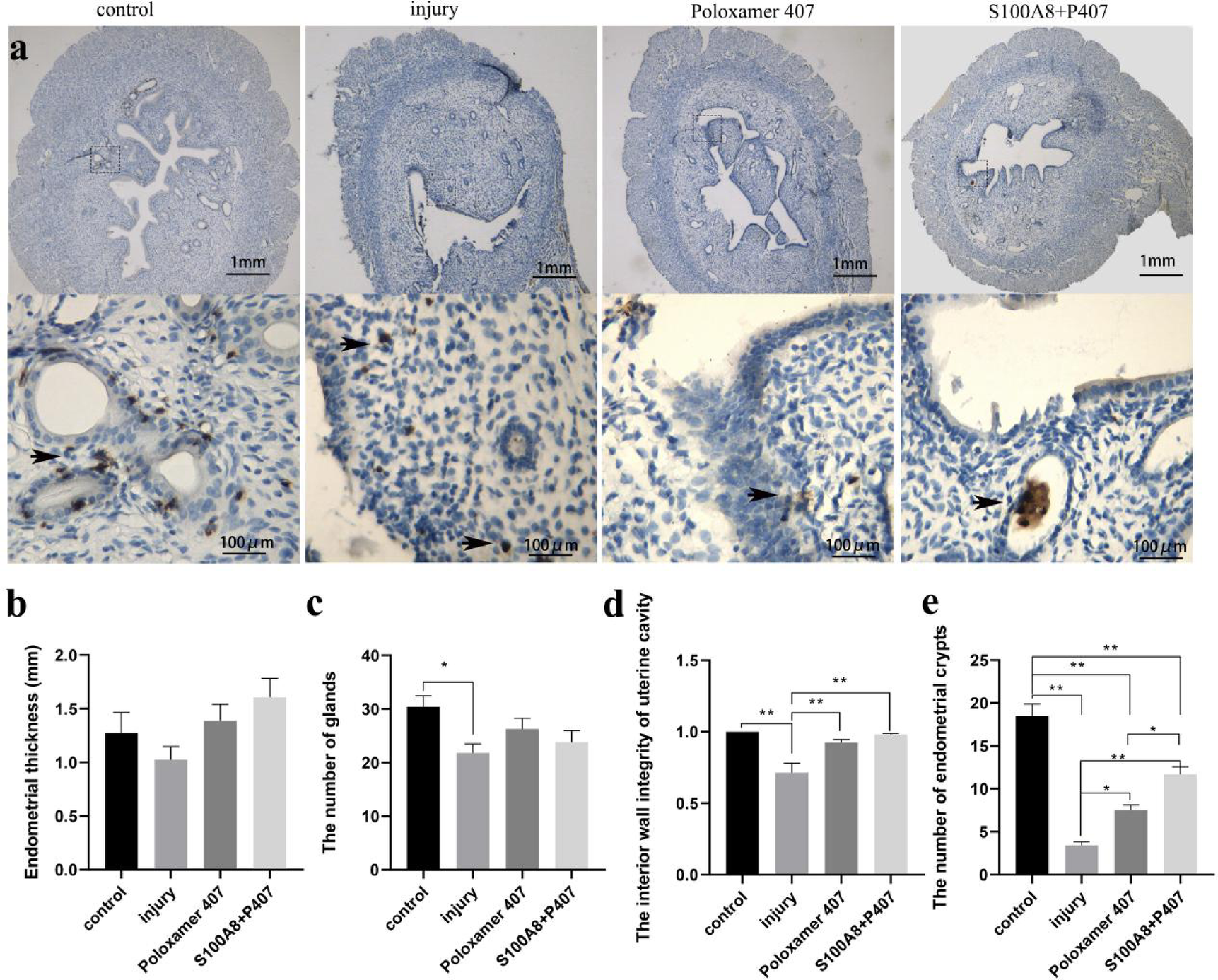

Fig. 2

Effects of uterine cavity administration of S100A8 on the distribution of S100A8-PICs and endometrial morphology. (a) Distribution of S100A8-positive cells in the endometrium of four different groups with estrogen treatment (control, injury, P407, and S100A8 + P407 groups). Black arrows show S100A8-PICs. S100A8-PICs were distributed around the glands and blood vessels in the control group. S100A8-PICs in the site of injury or adhesion in the injury group and in the P407 group. S100A8-PICs reverse migrated to the glands or blood vessels in the S100A8 + P407 group. Scale bar is 100 μm or 1 mm. (b) Endometrial thickness in the four groups (n = 15, from 5 rats; 3 position was measured randomly in an image of each rat, mean ± SEM). (c) The number of endometrial glands in each group (n = 10, from 10 rats, glands were counted from a uterine horn cross-section image at 40 × of each rat, mean ± SEM). (d) The interior wall integrity of uterine cavity in each group (n = 10, from 10 rats, data was measured from a uterine horn cross-section image at 40 × of each rat, mean ± SEM). (e) The number of endometrial crypts in each group (n = 10, from 10 rats, crypts were counted from a uterine horn cross-section image at 40 × of each rat, mean ± SEM). * Results with P values < 0.05 were considered significant. ** Results with P values < 0.01 were considered very significant.
