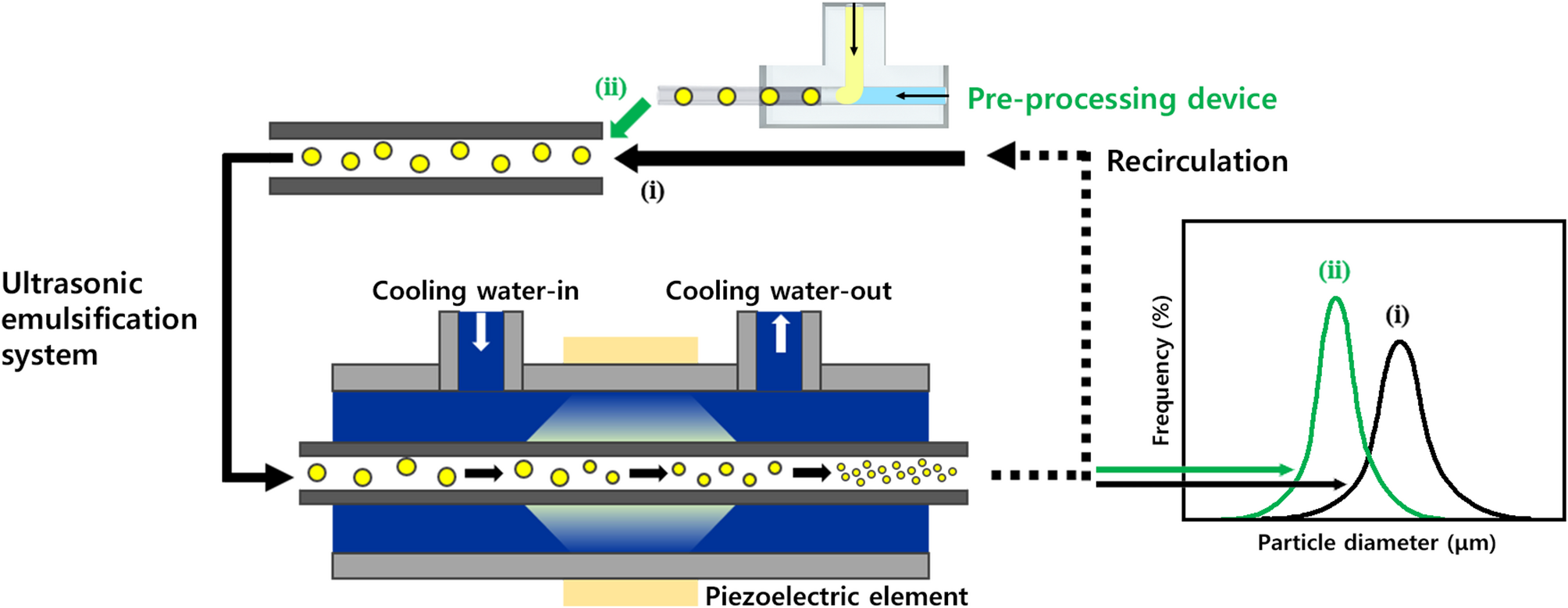

Fig. 1
The ultrasonic emulsification system composed of (i) recirculating main tube including oil droplets in water solvent, (ii) oil–water segmented flow from the pre-processing microfluidic device, and an ultrasonic emulsification equipment.
