From: Local microglial activation induced and labeled in the retina in a novel subretinal hemorrhage mouse model

Fig. 1

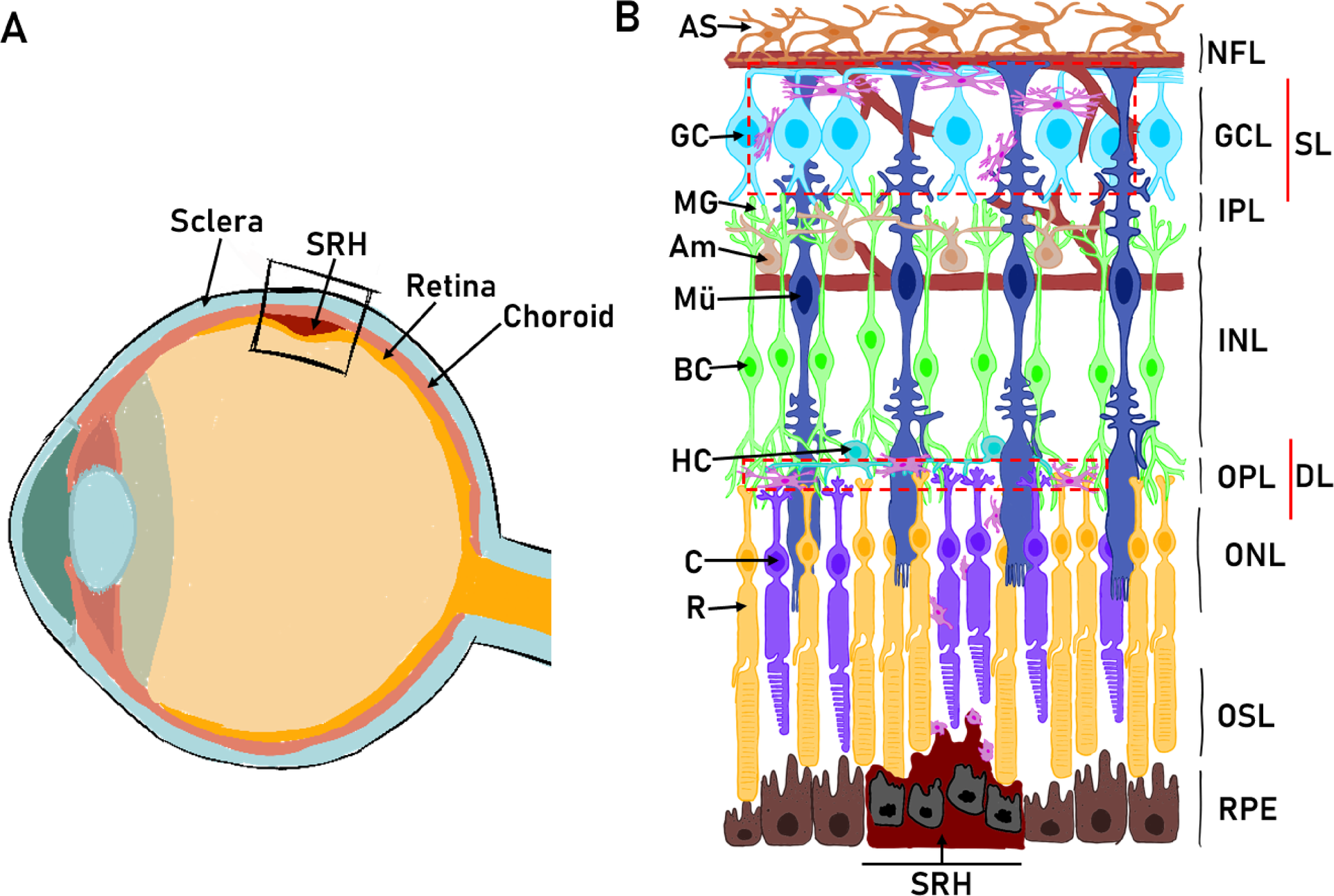

Subretinal hemorrhage. (A) Schematic diagram represents the human eye and (B) the retinal layers with the respective cell types. Dashed red boxes show microglia layers in the healthy retina. Abbr. Astrocyte (AS), Ganglion Cell (GC), Microglia (MG), Amacrine Cell (Am), Bipolar Cell (BC), Horizontal Cell (HC), Cone (C), Rod (R). Neurofilament Layer (NFL), Ganglion Cell Layer (GCL), Inner Plexiform Layer (IPL), Inner Nuclear Layer (INL), Outer Plexiform Layer (OPL), Outer Nuclear Layer (ONL), Outer Segment Layer (OSL), Retinal Pigment Epithelium (RPE), Subretinal Hemorrhage (SRH). Dashed red lines indicate the Superficial Layer (SL) and Deep Layer (DL) of microglia.
