Fig. 4

From: Local microglial activation induced and labeled in the retina in a novel subretinal hemorrhage mouse model

Fig. 4

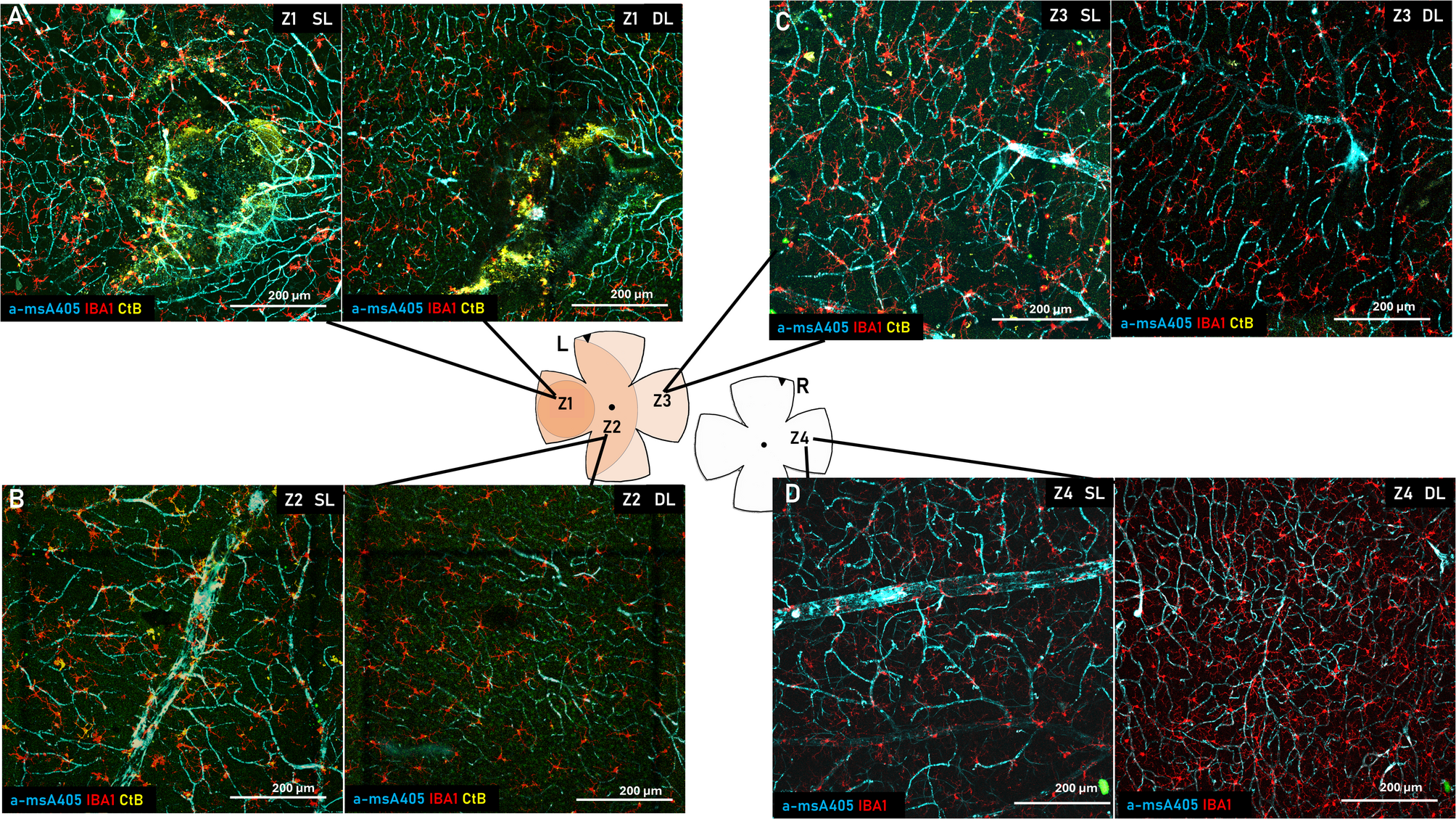

Example microscopic images of the SRH site and the surrounding areas. (A) SRH site (Z1) at the level of the superficial layer (left) and the deep layer (right). (B) Neighboring zone (Z2) superficial layer (left) and the deep layer (right). (C) Z3, the farthest zone from the SRH site at the level of the superficial layer (left) and the deep layer (right). (D) Control retina (Z4; contralateral eye) at the level of the superficial layer (left) and the deep layer (right). All images are 20x magnification confocal images.
