From: Local microglial activation induced and labeled in the retina in a novel subretinal hemorrhage mouse model

Fig. 7

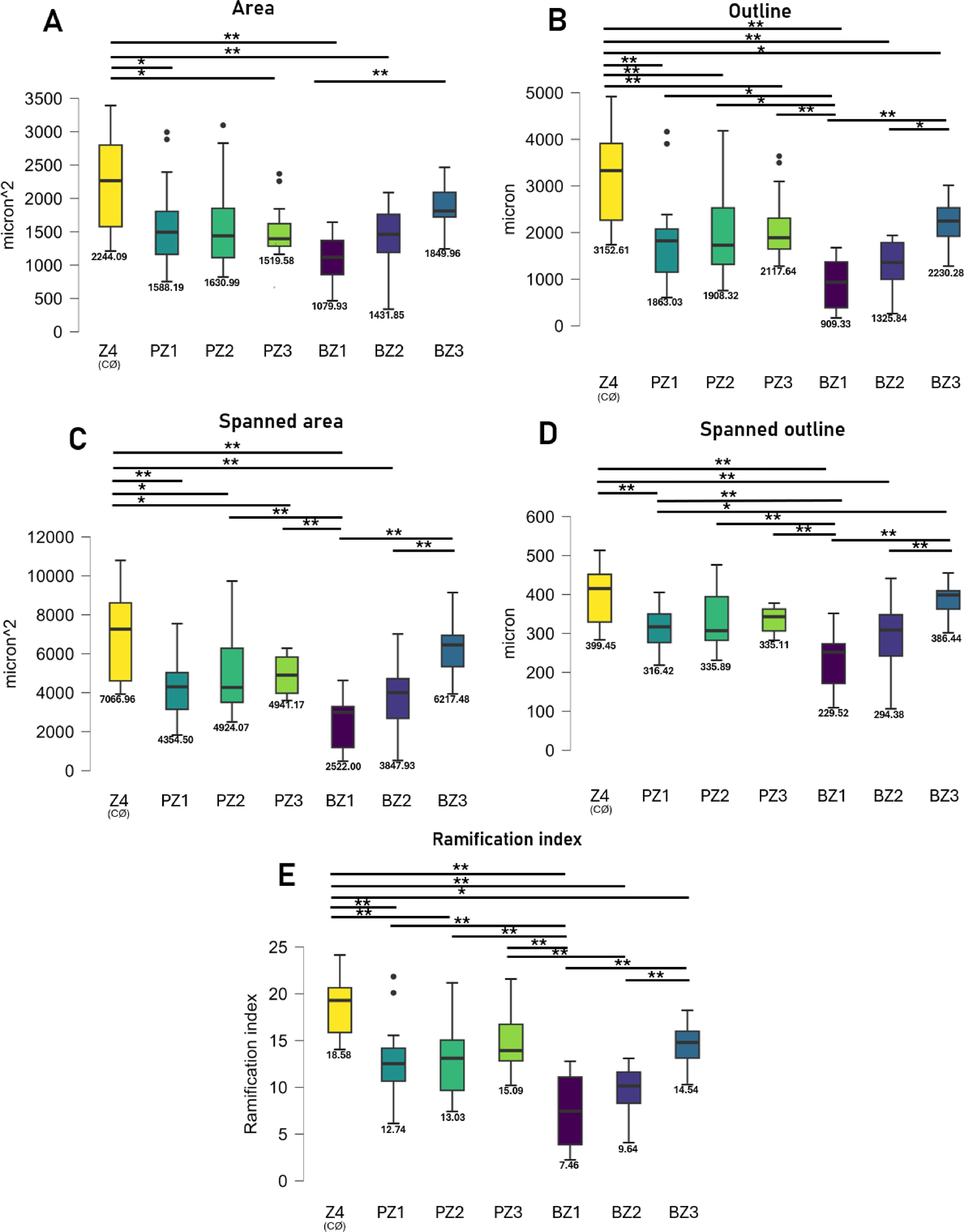

Microglial activation based on automated cell morphologies with MotiQ32 based on a sample set of pooled cell images (15–15 cells, random) from all zones (BZ1: SRH, BZ2: neighboring, BZ3: contralateral side from the same retina, PZ1: PBS subretinal injected, PZ2: PBS neighboring, PZ3: PBS injected-contralateral side, Z4: healthy contralateral eye). (A) Total occupied area of cells decreasing when activated together with cell outlines (B), spanned areas (C), and Spanned outlines (D). The Ramification index shows the complexity of MG end-feet. ANOVA, Tukey’s post hoc **p < 0.01 *p < 0.05 o = outliers x = mean. Original data available in the Supplementary Dataset.
