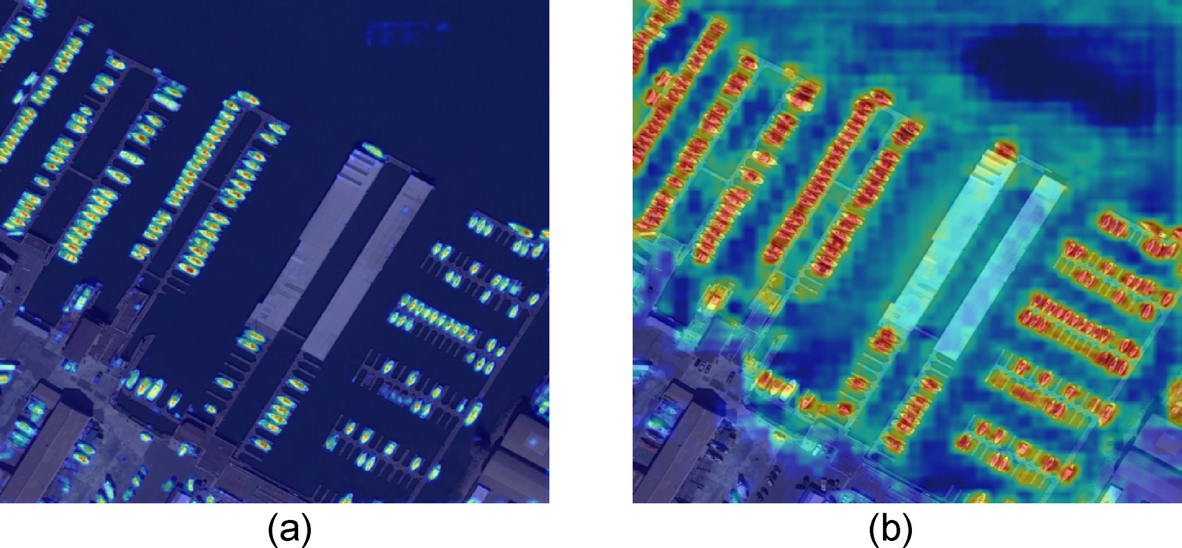

Fig. 10
From: EFCNet for small object detection in remote sensing images
Comparison of heat maps between EFCNet and YOLOv5 in the DOTA dataset, The left figure (a) is the visual thermodynamic diagram of EFCNet, and the right figure (b) is the yolov5 visual thermodynamic diagram.
