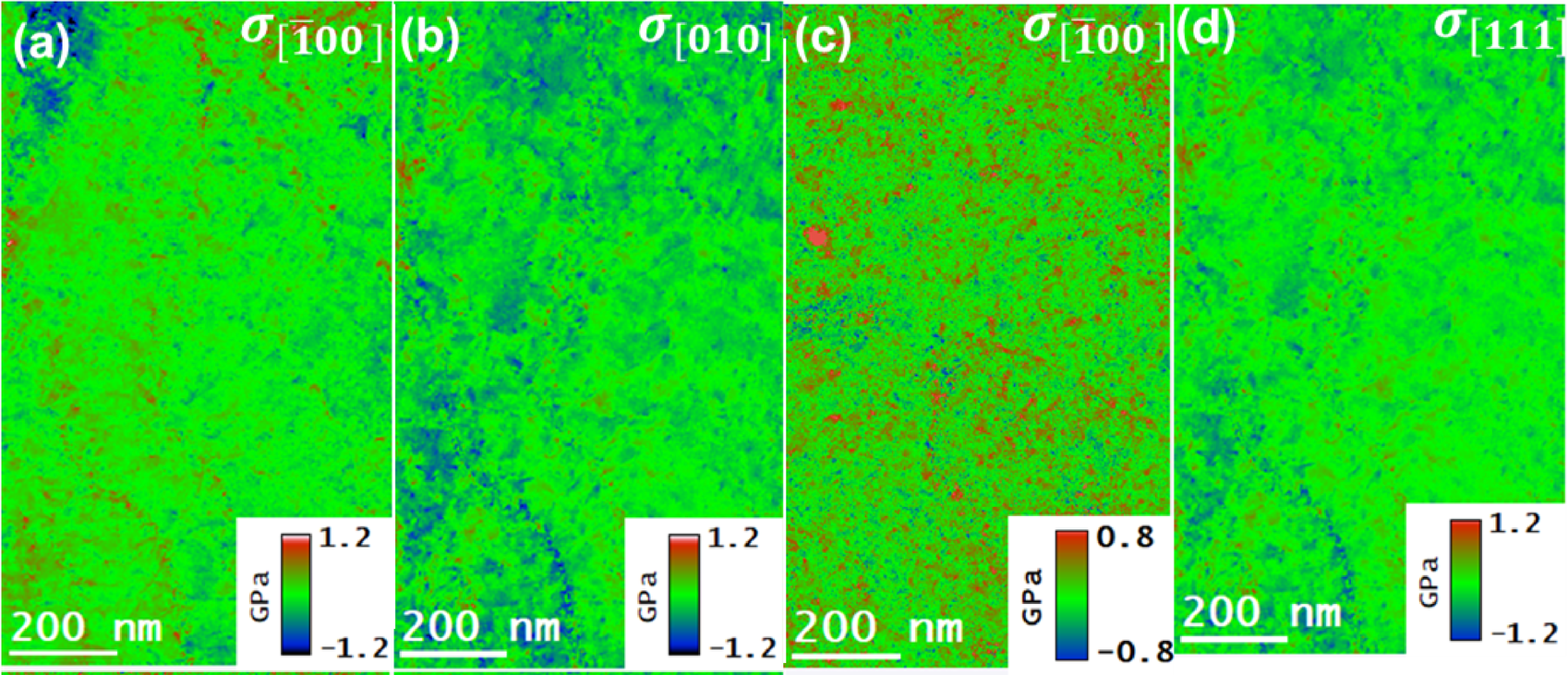

Fig. 16
From: Mapping residual stresses in AlSi10Mg alloy fabricated by powder bed fusion-laser beam method
The residual stress maps of T6 heat-treated AlSi10Mg samples acquired by multiplying the \(\:{Y}_{M}\) maps and the corresponding residual strain maps. (a), (b): normal stresses in the [\(\:\stackrel{-}{1}\)00] and [1\(\:\stackrel{-}{1}1\)] directions in the building orientation. (c), (d): normal stresses in the [\(\:\stackrel{-}{1}\)00] and \(\:\left[010\right]\) in scanning orientation.
