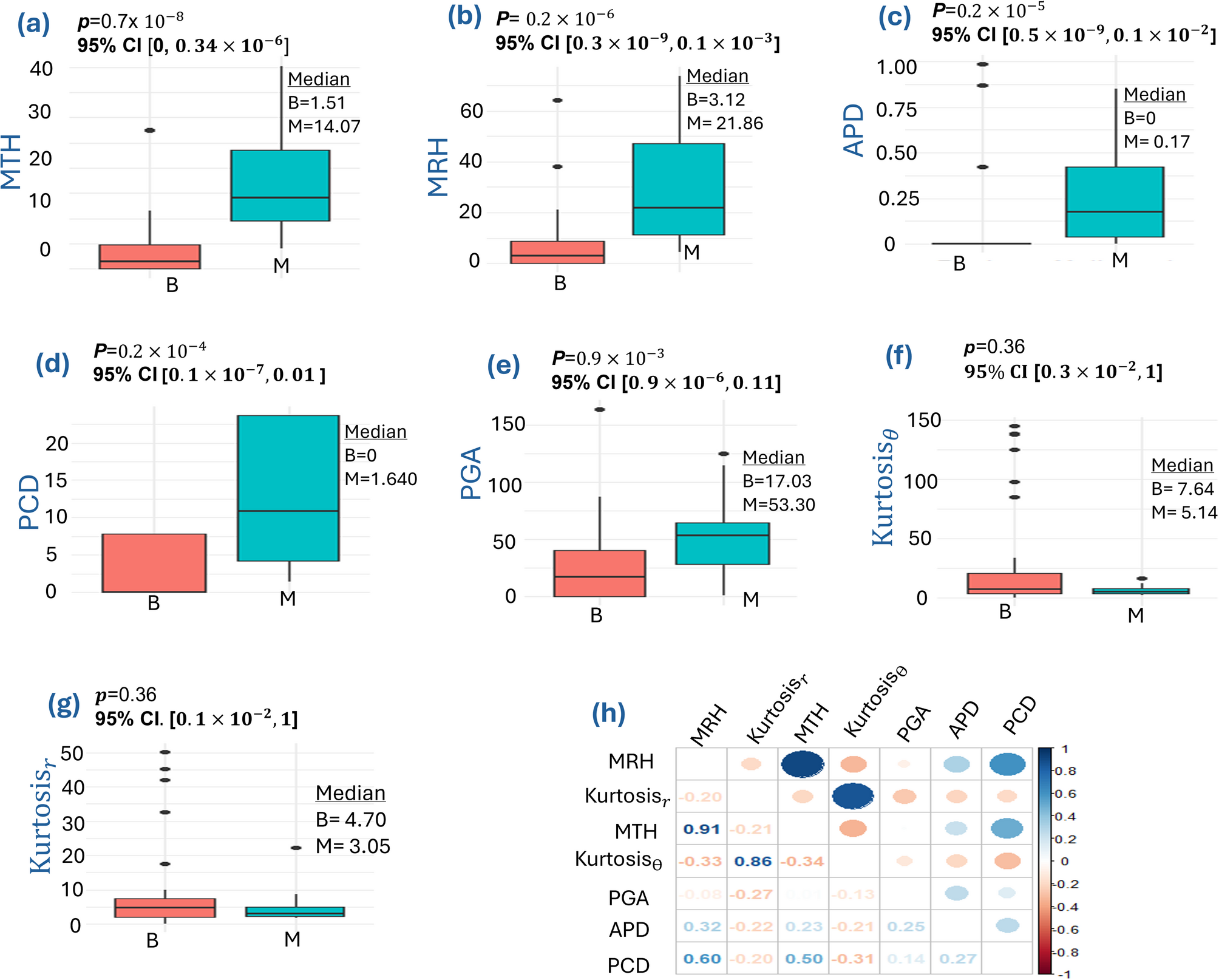

Box plots of all seven biomarkers and Pearson correlation coefficient plot. (a)-(g) Box plots of biomarkers MTH, MRH, APD, PCD, PGA, KurtosisѲ and \(\:{\text{K}\text{u}\text{r}\text{t}\text{o}\text{s}\text{i}\text{s}}_{\text{r}}\). (h) The correlation coefficient plot between all seven biomarkers. \(\:p\:\) represent "Holm-Šidák" adjusted p-values, and the median values of distribution of benign and malignant case of each biomarker is also shown in the left side of each box plot. B = Benign and M = Malignant.
