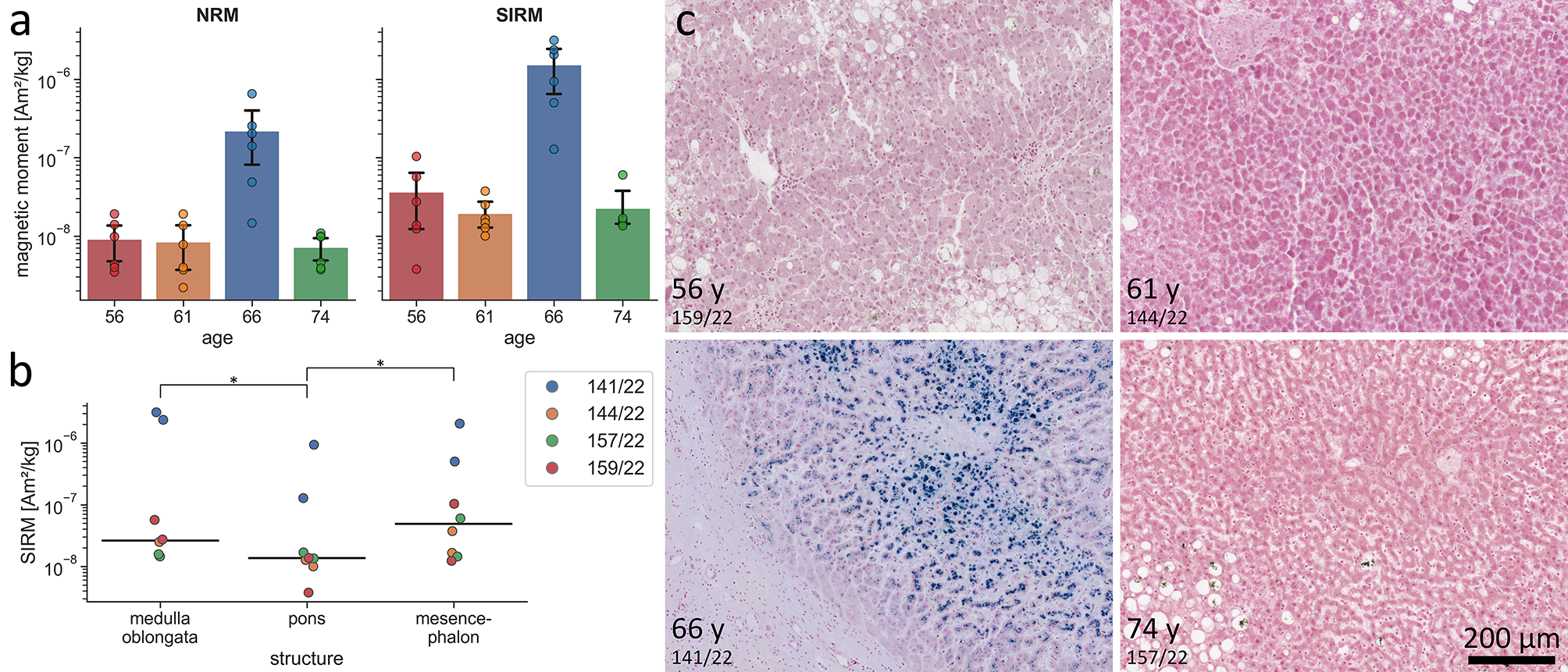

Fig. 1
From: Magnetic iron-oxide nanoparticles in the brain connected to alcohol-associated liver disease
Magnetometry results of brain tissue and pathohistological examination of liver tissue. a Mass normalized natural remanent magnetization (NRM) and saturated isothermal remanent magnetization (SIRM) of the four investigated brainstems, ordered by age of the subjects (also see Supplementary Table 2). Data are represented as mean magnetic moments with 95% confidence intervals as well as individual data points. b Vertical distribution of mass normalized SIRM in the brainstems. Data are represented as median SIRM of each structure (black lines) and individual data points, *p < 0.05 according to two-sided Wilcoxon signed-rank tests. c Perl’s Prussian blue stained liver tissue from each case (also see Supplementary Fig. 2). Scale bar: 200 μm.
