Fig. 3
From: Characterization of dip effect on strength for gently inclined rock pillar

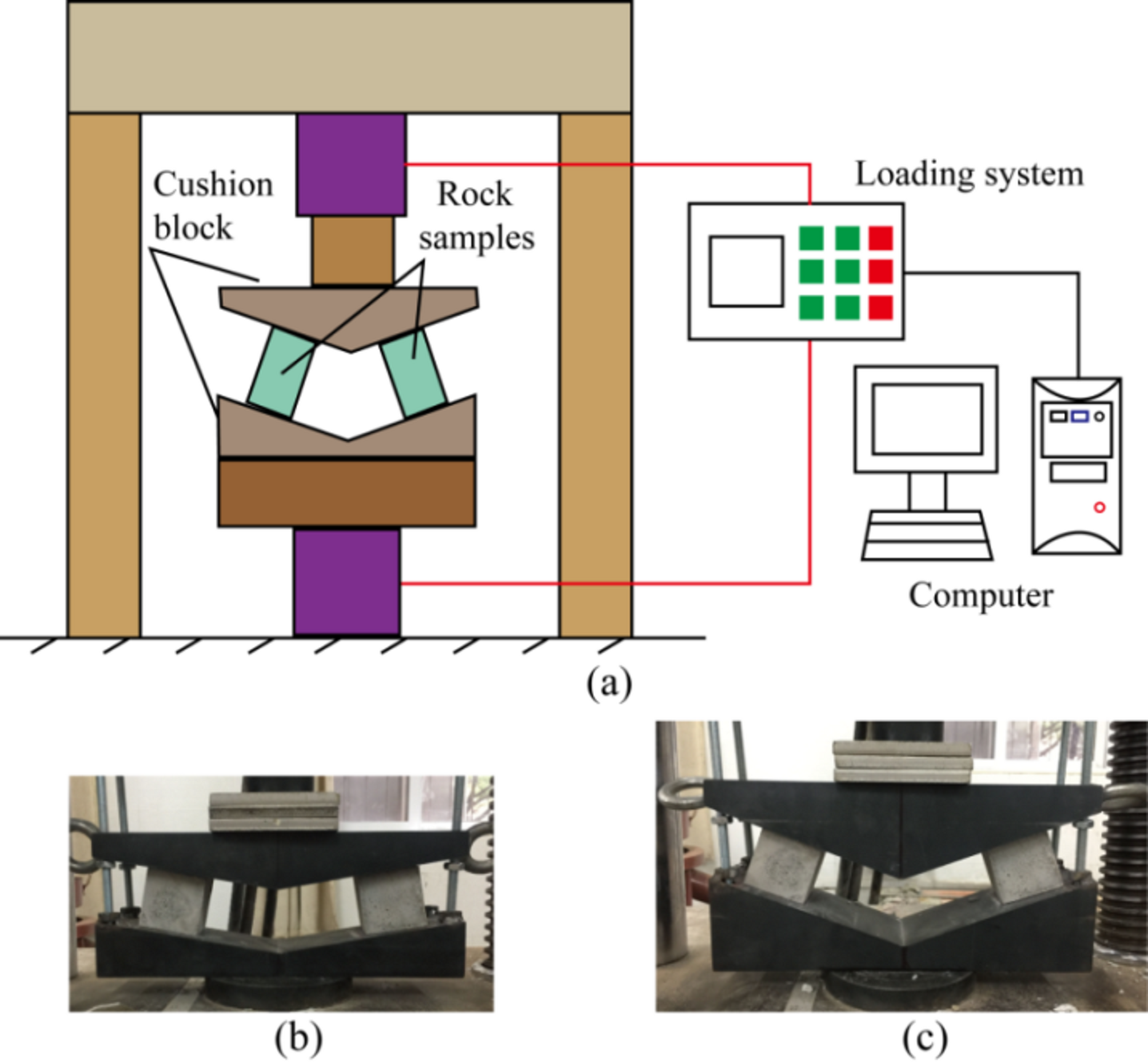

Compression-shear loading test system and cushion block (Luo et al18.); (a) Compression-shear loading test system; (b) Dip of sample with 10°; (c) Dip of sample with 20°.
