Fig. 1
From: Associations between the SMARS score derived from CT and MRI with histopathological features in HCC

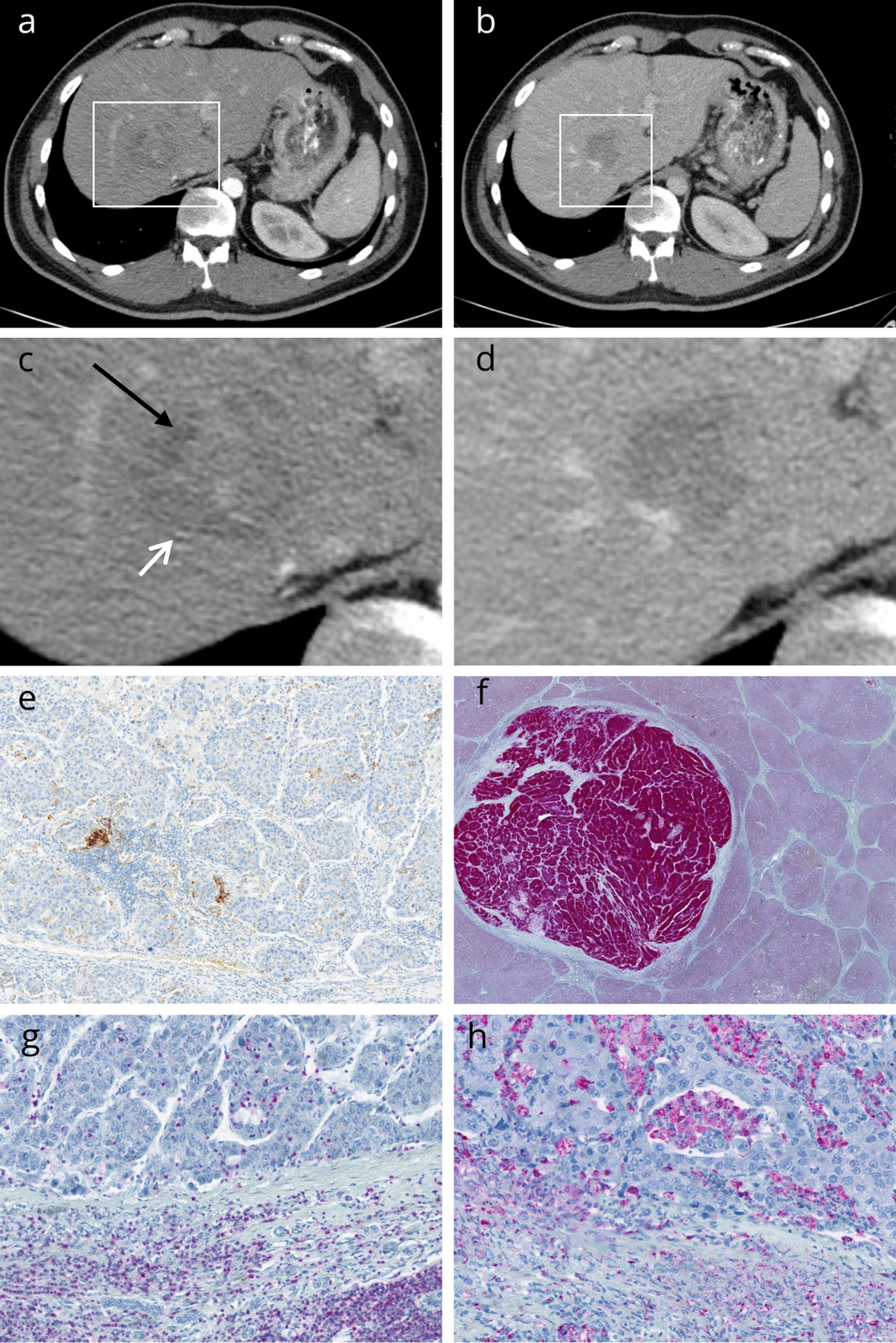

CT images of a patient with a proliferative HCC in the right liver lobe, segment VIII. A. Arterial phase with a heterogeneous enhancement and mosaic-pattern. No satellite lesions or lobulated shape or rim APHE. The AFP level was over 200 ng/ml. B. Portalvenous phase shows a washout phenomenon of the lesion consistent with the HCC criteria. C. and D. magnified view of the tumour. In the arterial phase (white arrow and black arrow) feature of mosaic appearance is clearly visible. E. PD-L1 staining of the tumour with positive tumour and stroma cells. F. Glypican-3 expression of the tumour. G. CD3 staining demonstrating tumour and stroma positive infiltrating lymphocytes. H. CD68 staining with positivity of both compartments.
