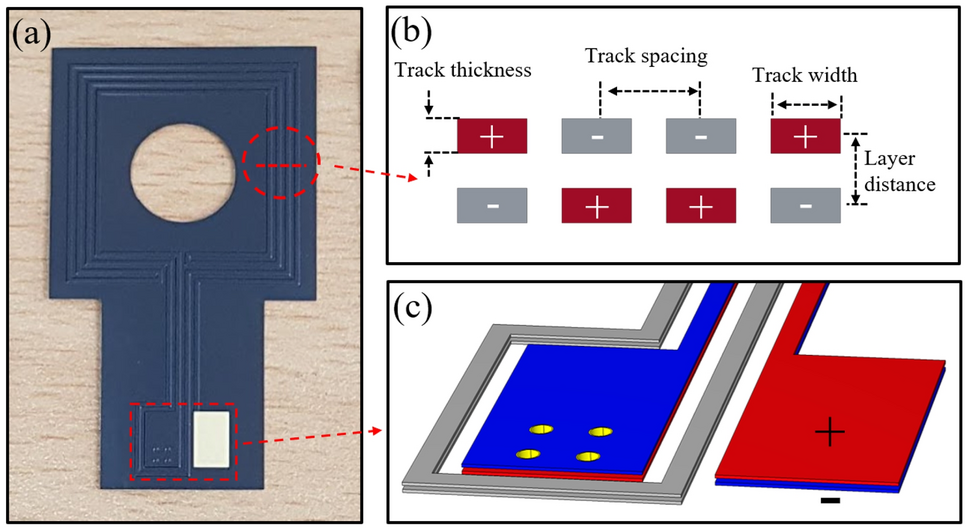

Fig. 2
From: Error analysis of a heating oven for a spin-exchange relaxation-free magnetometer
(a) Photograph of the electrical heating film; (b) current direction and geometric parameters of the heating film; (c) electrical polarity of individual layers (red and blue indicate positive and negative, respectively) and through-hole vias.
