From: Error analysis of a heating oven for a spin-exchange relaxation-free magnetometer

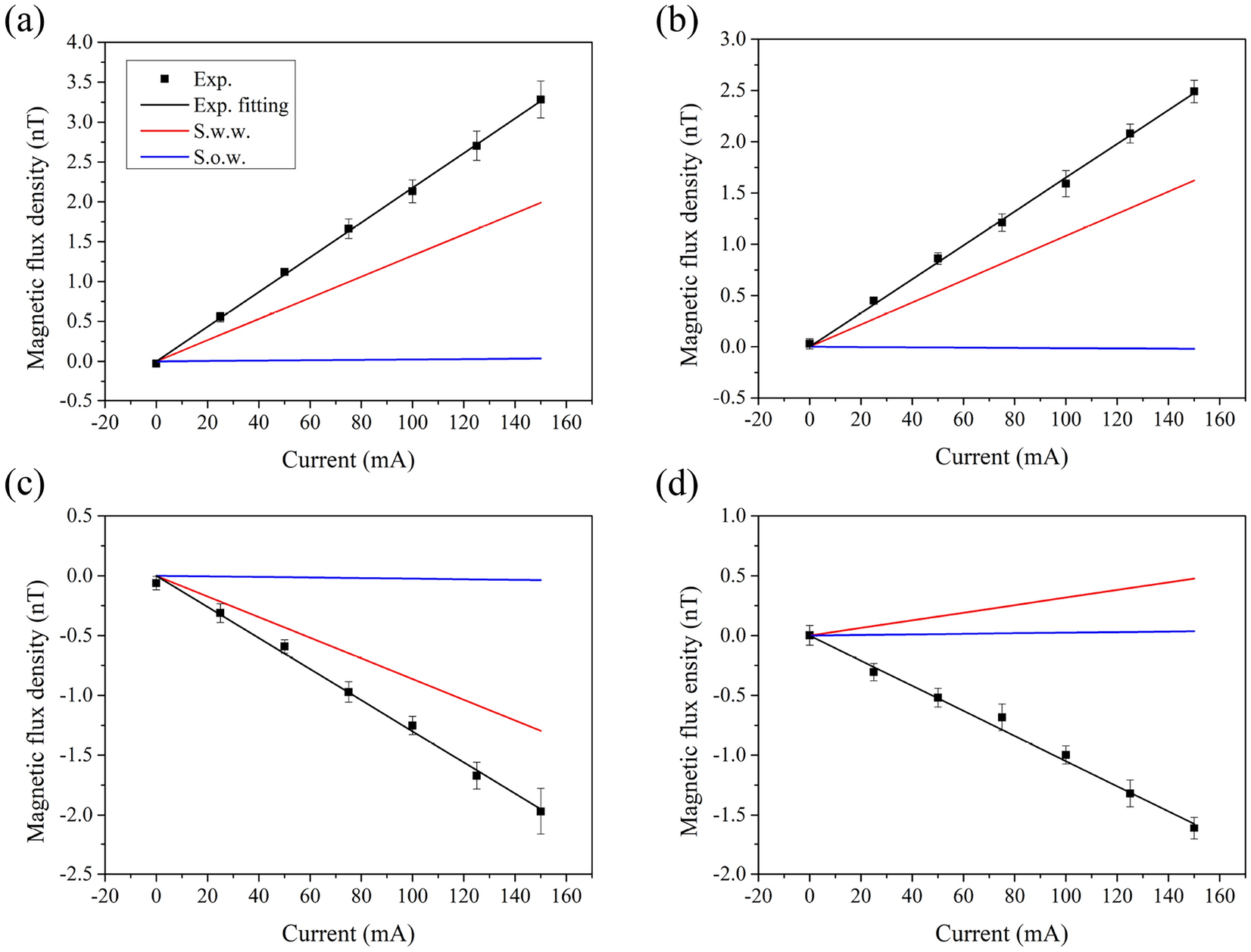

Comparison between measured and simulated magnetic flux density components at each probe position. The x-probe, \(y_1\)-probe, \(y_2\)-probe, and z-probe correspond to specific magnetic field measurement positions, as indicated in Fig. 4. (a) x-axis component at the x-probe. (b) y-axis component at the \(y_1\)-probe. (c) y-axis component at the \(y_2\)-probe. (d) z-axis component at the z-probe. In all panels, black markers indicate experimental measurements averaged over five repetitions. Red lines represent simulation results including the twisted wire pair, and blue lines represent results without the wires. The simulated values represent spatial averages within ideal cylindrical volumes matching the sensitive region of each probe.
