Fig. 7
From: Error analysis of a heating oven for a spin-exchange relaxation-free magnetometer

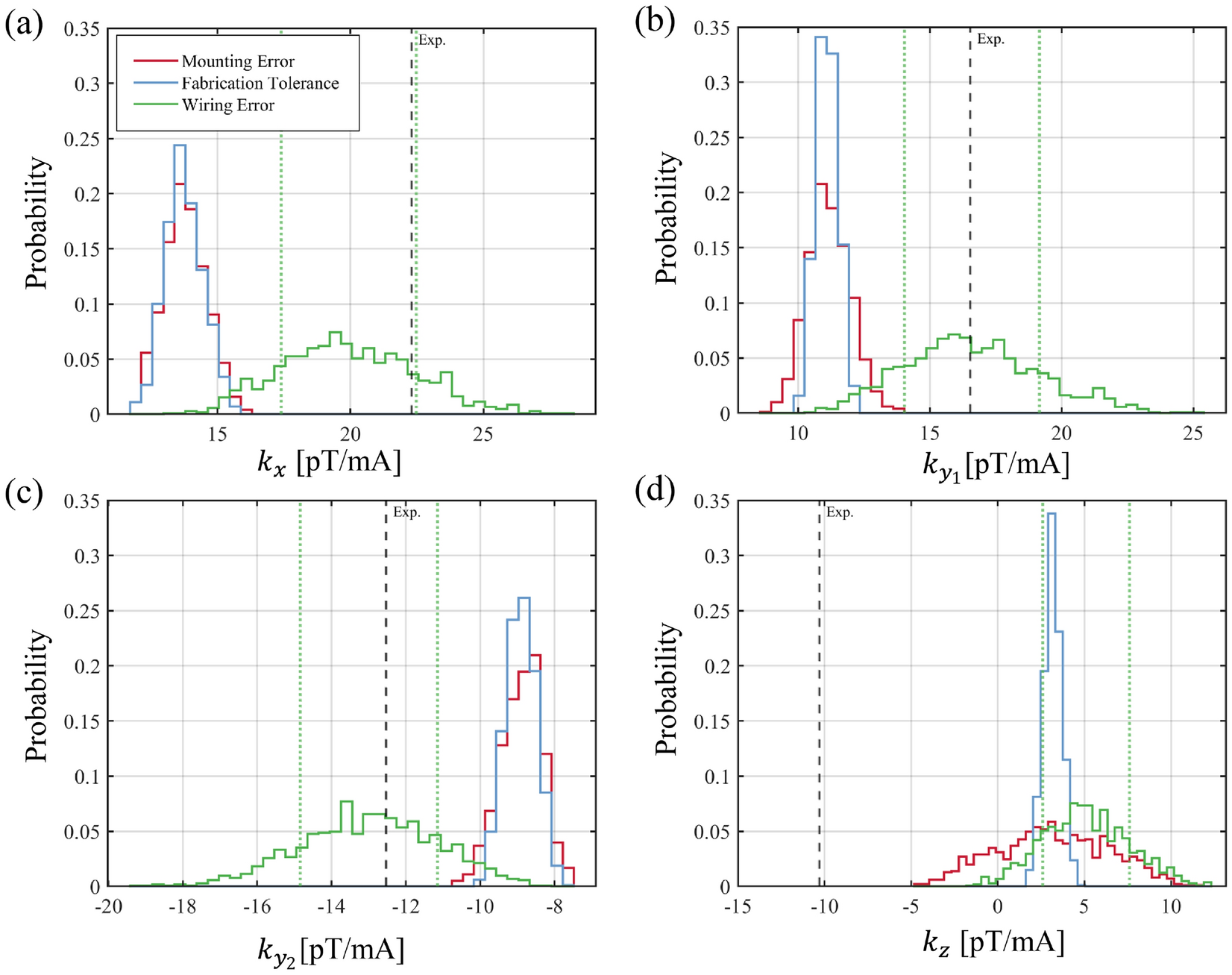

Monte Carlo simulation results for the magnetic field gradient components (\(k_{x}\), \(k_{y_1}\), \(k_{y_2}\), and \(k_{z}\)) under three categories of error: mounting error, fabrication tolerance, and wiring error. For each category, 1000 simulations were performed, and the results were visualized as probability-normalized histograms. The black dashed lines indicate the experimentally measured values, while the green dashed lines represent the \(\pm 1\sigma\) range from the wiring error simulations.
