Fig. 5
From: Improving soil water dynamics and crop productivity through conservation tillage in arid regions

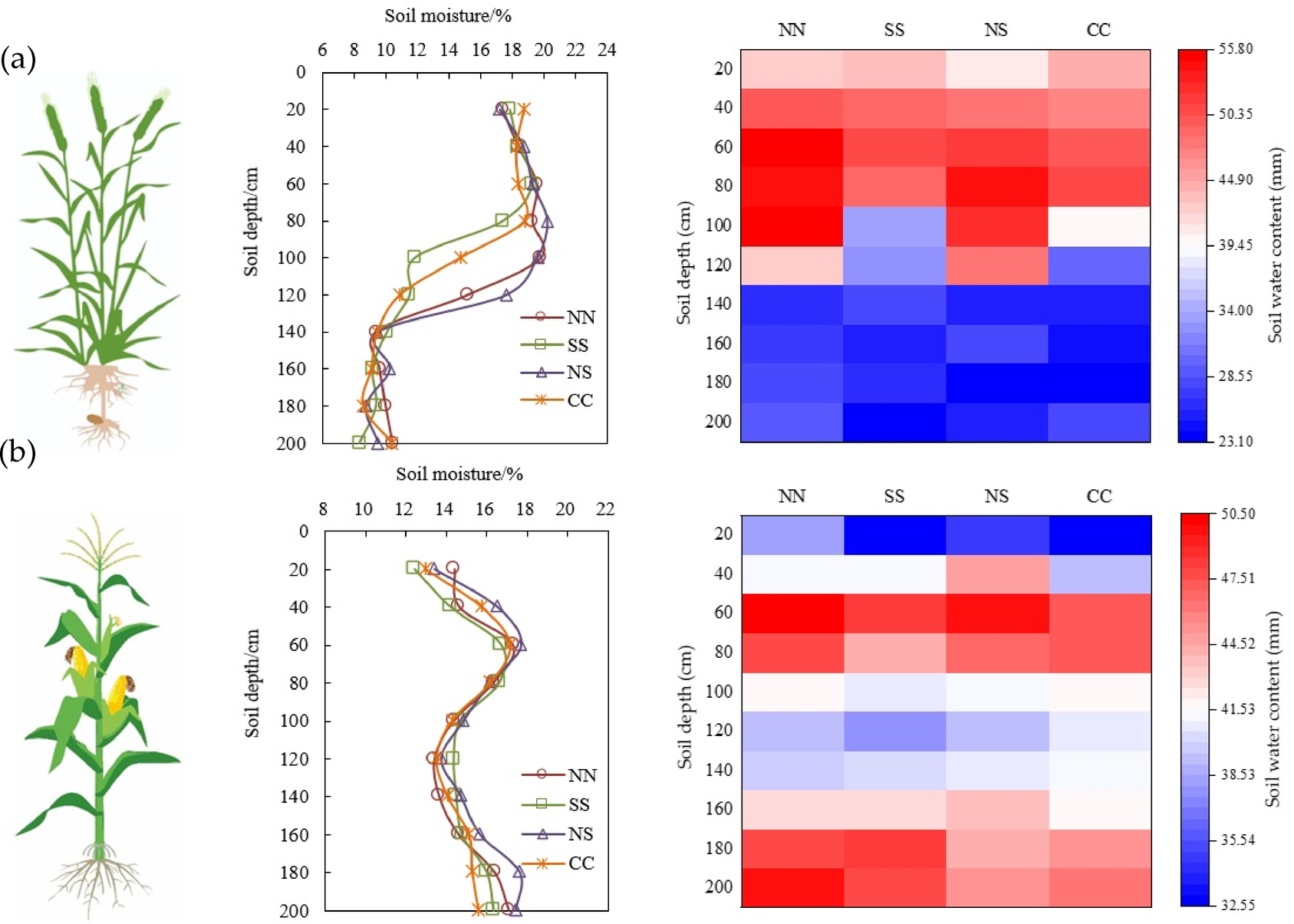

Changes of soil moisture and soil water content in 0 ~ 200 cm soil layer of different tillage methods before sowing of crops. (a) for the cultivation of winter wheat and (b) for the cultivation of spring maize.
