Fig. 10 | Scientific Reports

Fig. 10

From: CXCL14 drives age-related intervertebral disc degeneration via NF-κB pathway activation in a multiomic study

Fig. 10

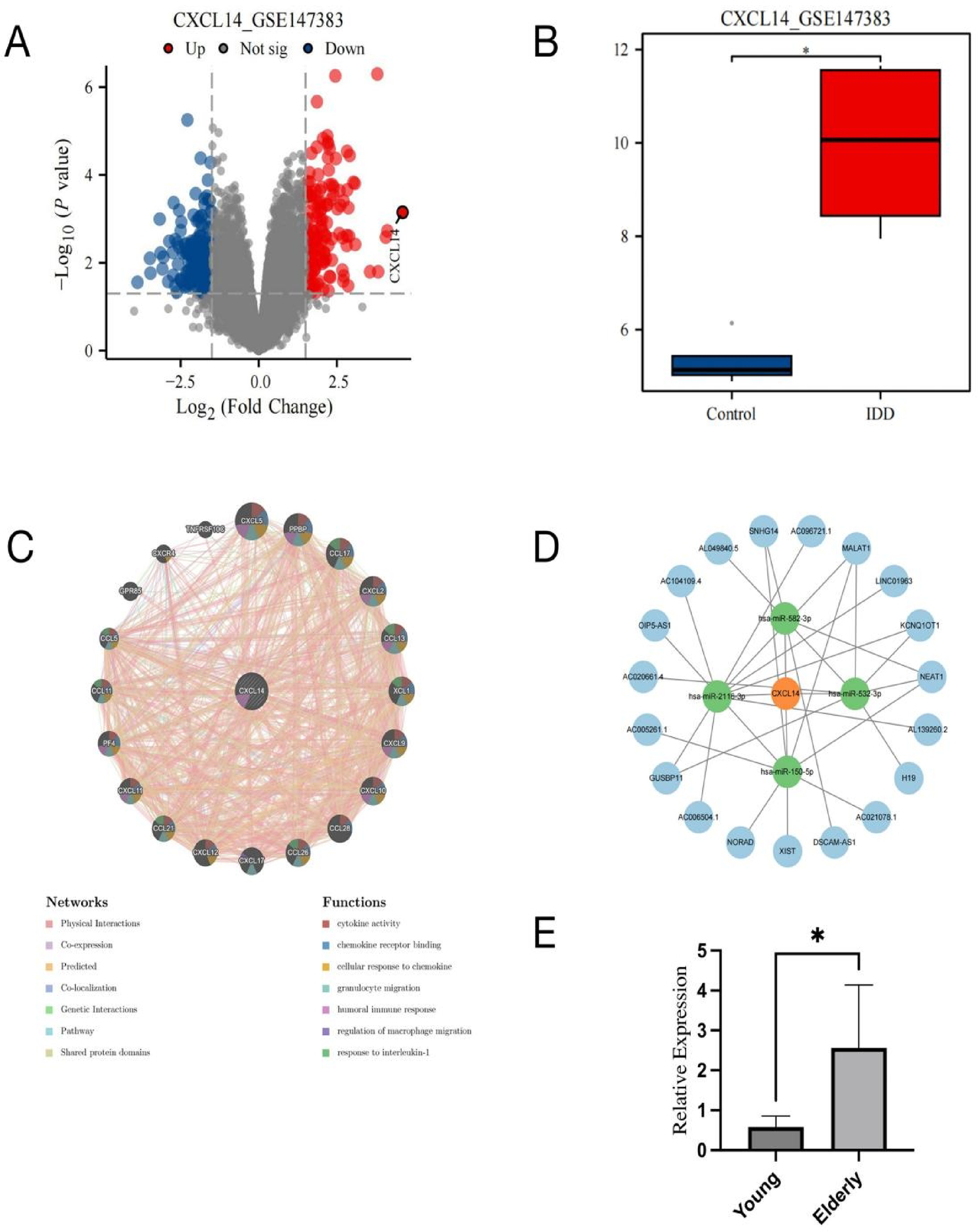

(A) Volcano plot showing the differential expression of genes in the GSE147383 dataset. (B) Boxplot of CXCL14 expression levels in the control and IDD groups based on the GSE147383 dataset. (C) GeneMANIA Gene Interaction Network related to CXCL14. (D) CXCL14-related mRNA-miRNA-lncRNA regulatory networks in ENCORI. (E) RT-qPCR was used to detect the differential expression of feature genes in young and elderly groups.
