Fig. 13
From: Softening and instability evolution of strip coal pillar under water immersion in goaf

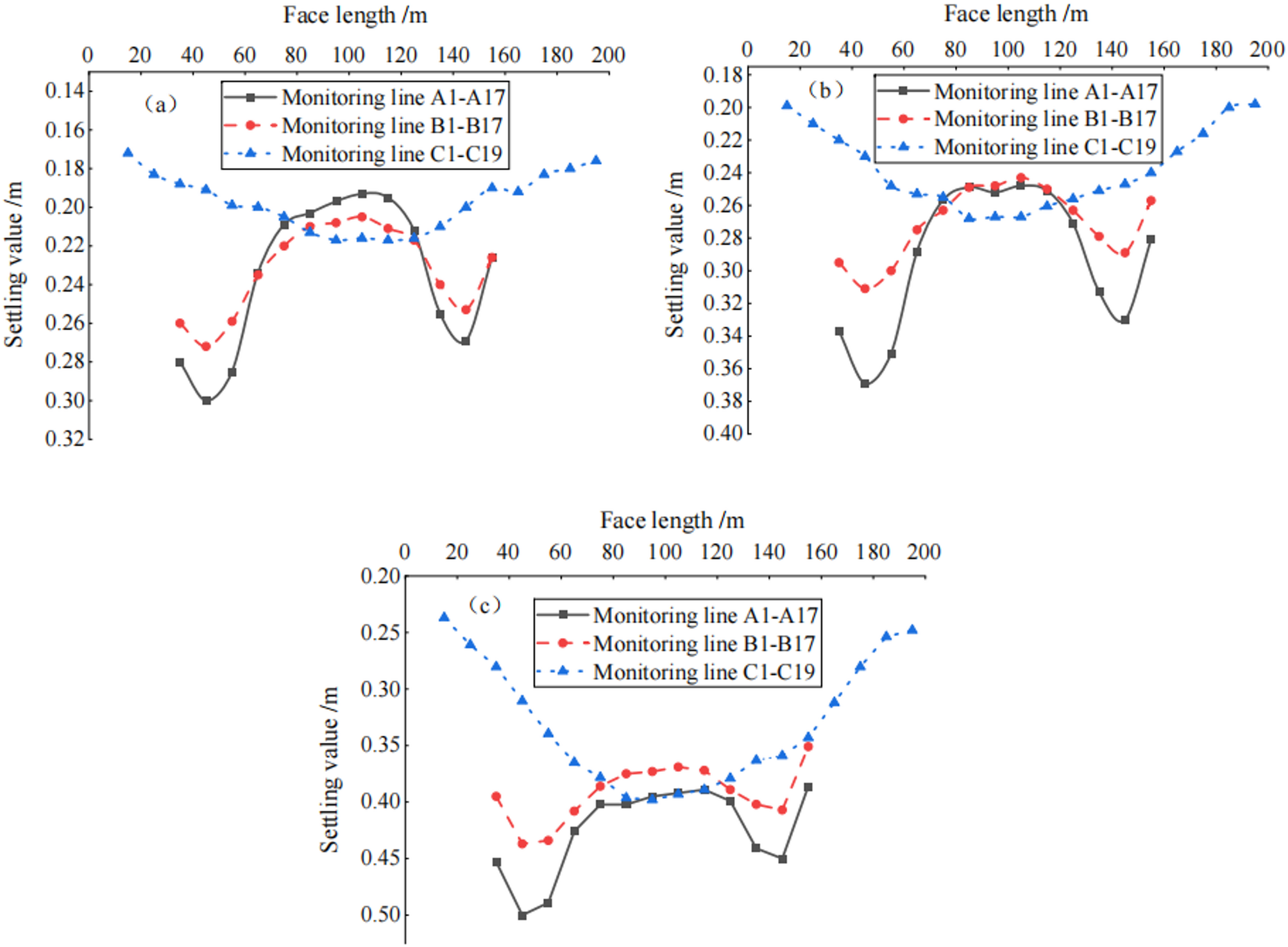

Monitoring of overlying rock settlement following coal pillar softening. (a) Buckling strain diagram for the first softening of coal pillar, (b) buckling strain diagram for the second softening of coal pillar, (c) buckling strain diagram for the third softening of coal pillar.
