Fig. 8
From: Softening and instability evolution of strip coal pillar under water immersion in goaf

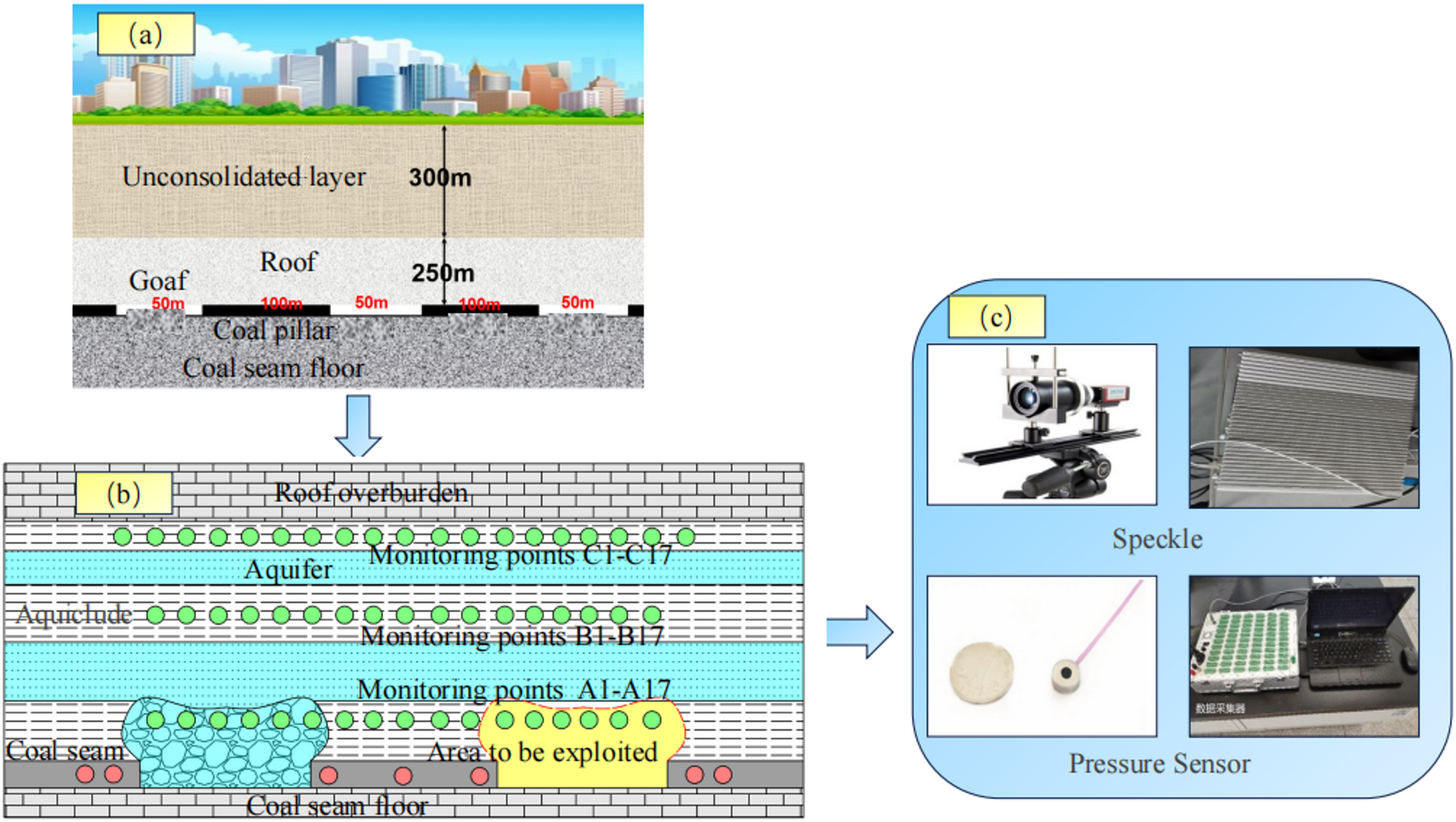

Similar simulation schematic diagram. (a) Stratigraphic map, (b) schematic diagram of similar simulation model, (c) monitoring equipment.
Fig. 8 | Scientific Reports
