Fig. 4 | Scientific Reports

Fig. 4

From: Interfering with USP50 expression inhibits macrophage pyroptosis in sepsis-induced acute lung injury by degrading NLRP3 protein

Fig. 4

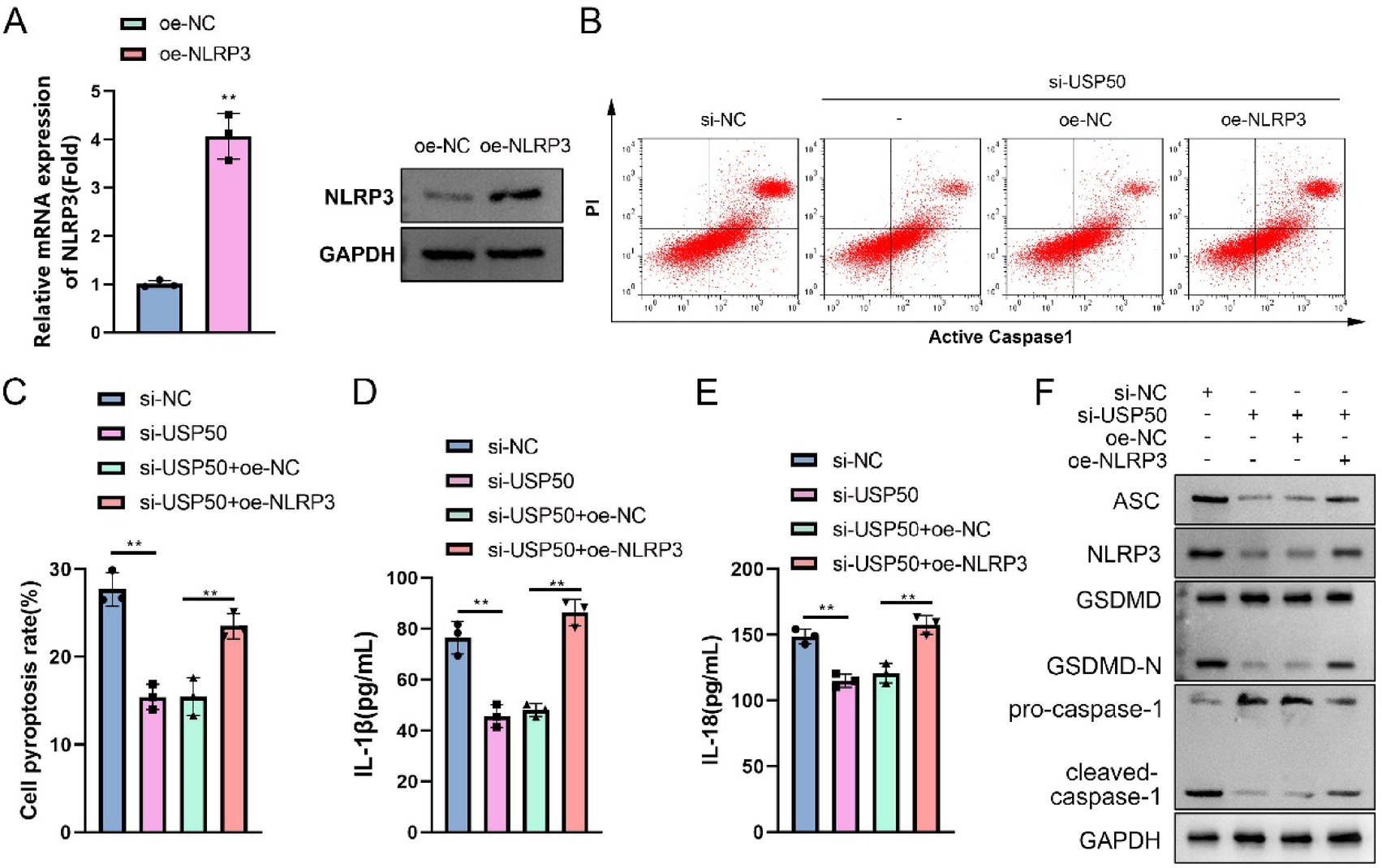

Overexpression of NLRP3 abrogated the inhibition of macrophage pyroptosis induced by USP50 knockdown. (A) The expression of NLRP3 was detected in macrophages using qPCR and immunoblotting after transfection with oe-NC and oe-NLRP3. (B) Cell pyroptosis was evaluated by flow cytometry, and (C) the pyroptosis rate was quantified. (D) IL-1β and (E) IL-18 levels in the supernatant of the cell culture medium were detected using ELISA. (F) ASC, NLRP3, GSDMD, GSDMD-N, pro-caspase-1, and cleaved caspase-1 protein levels were detected using immunoblotting. (n = 3). Original blots are presented in Supplementary Fig. 3. **P < 0.01.
