From: Evaluating the echogenicity of ethyl cellulose-ethanol gel for tracking biodistribution during liver ablation

Fig. 3

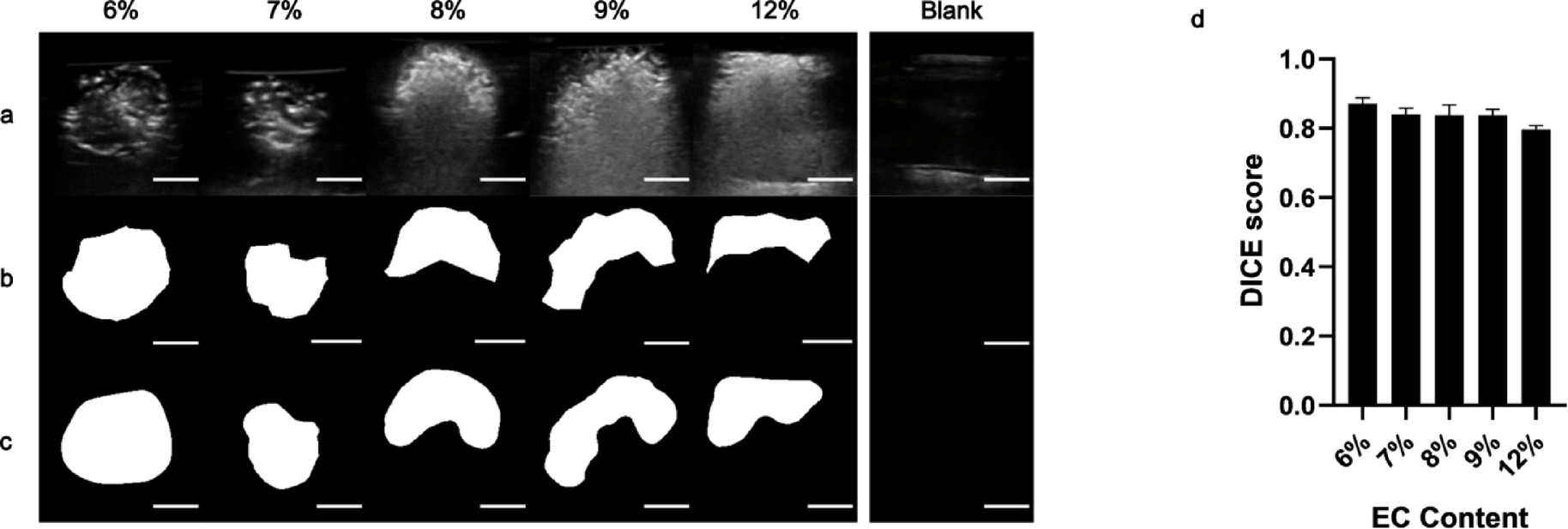

Visibility of different concentrations of EC-ethanol in agar under ultrasound imaging. (a) Representative B-mode images and binary masks of the EC-ethanol depots generated via (b) manual segmentation and (c) automatic segmentation. Scale bars = 5 mm. (d) Dice scores for measuring the similarity between binary masks generated from manual depot segmentation vs. automatic segmentation. N = 10.
