Fig. 7 | Scientific Reports

Fig. 7

From: Evaluating the echogenicity of ethyl cellulose-ethanol gel for tracking biodistribution during liver ablation

Fig. 7

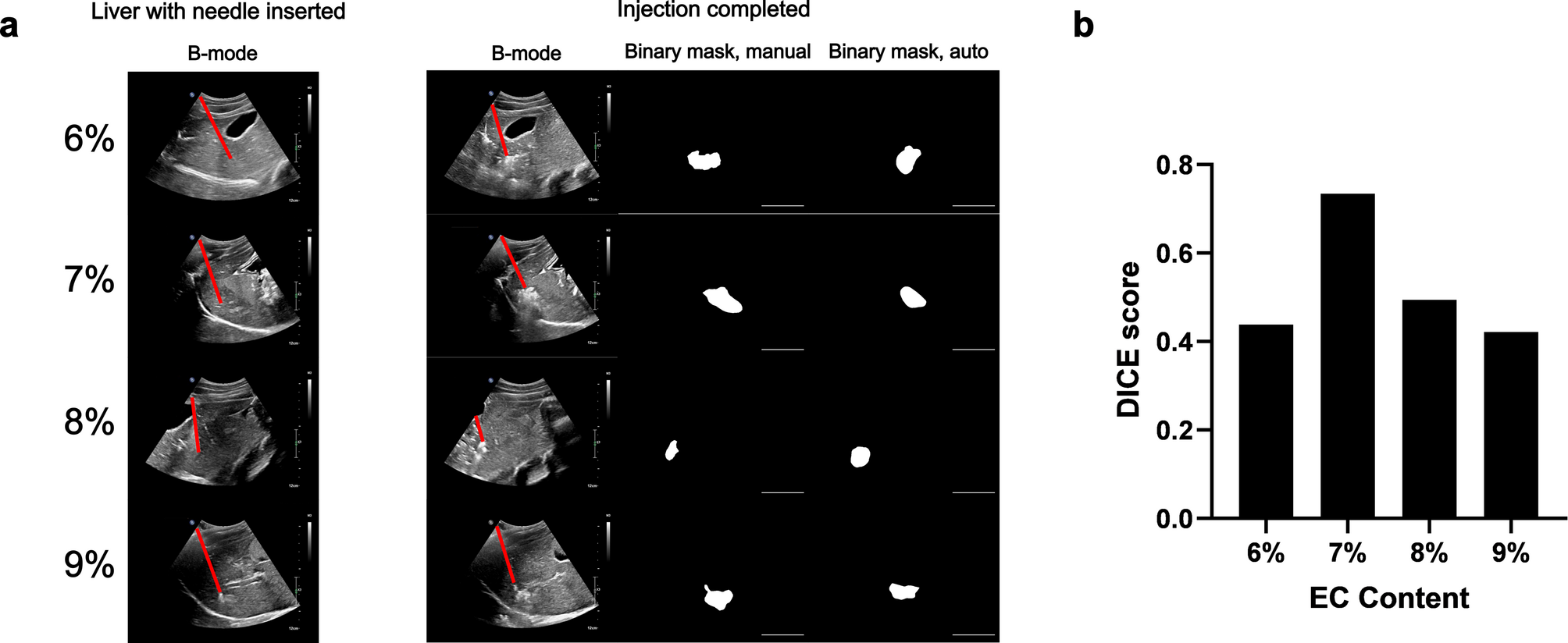

Visibility of EC-ethanol under ultrasound imaging in post-mortem swine liver. (a) Representative B-mode images and corresponding binary masks of EC-ethanol after completion of injection. Red lines denote needle path. Scale bars = 5 cm. (b) Dice score for measuring the similarity between binary masks generated from manual depot segmentation vs. automatic segmentation. N = 1.
