Fig. 12
From: A low resistance circular diverter tee based on an improved random forest model

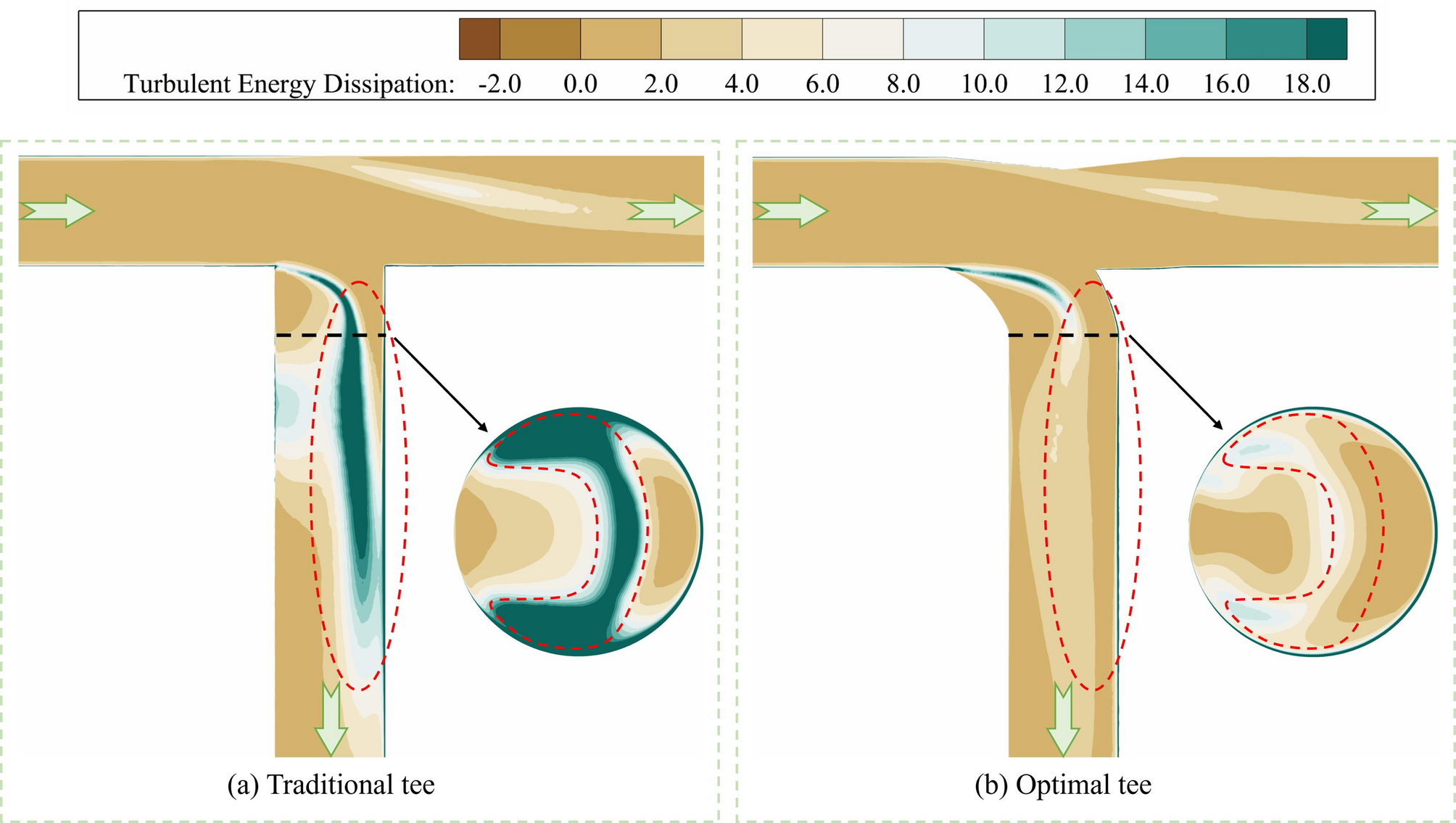

Energy dissipation field of the tee centre section and the branch outlet; (a) energy dissipation field of the traditional tee; (b) energy dissipation field of the optimized tee.
