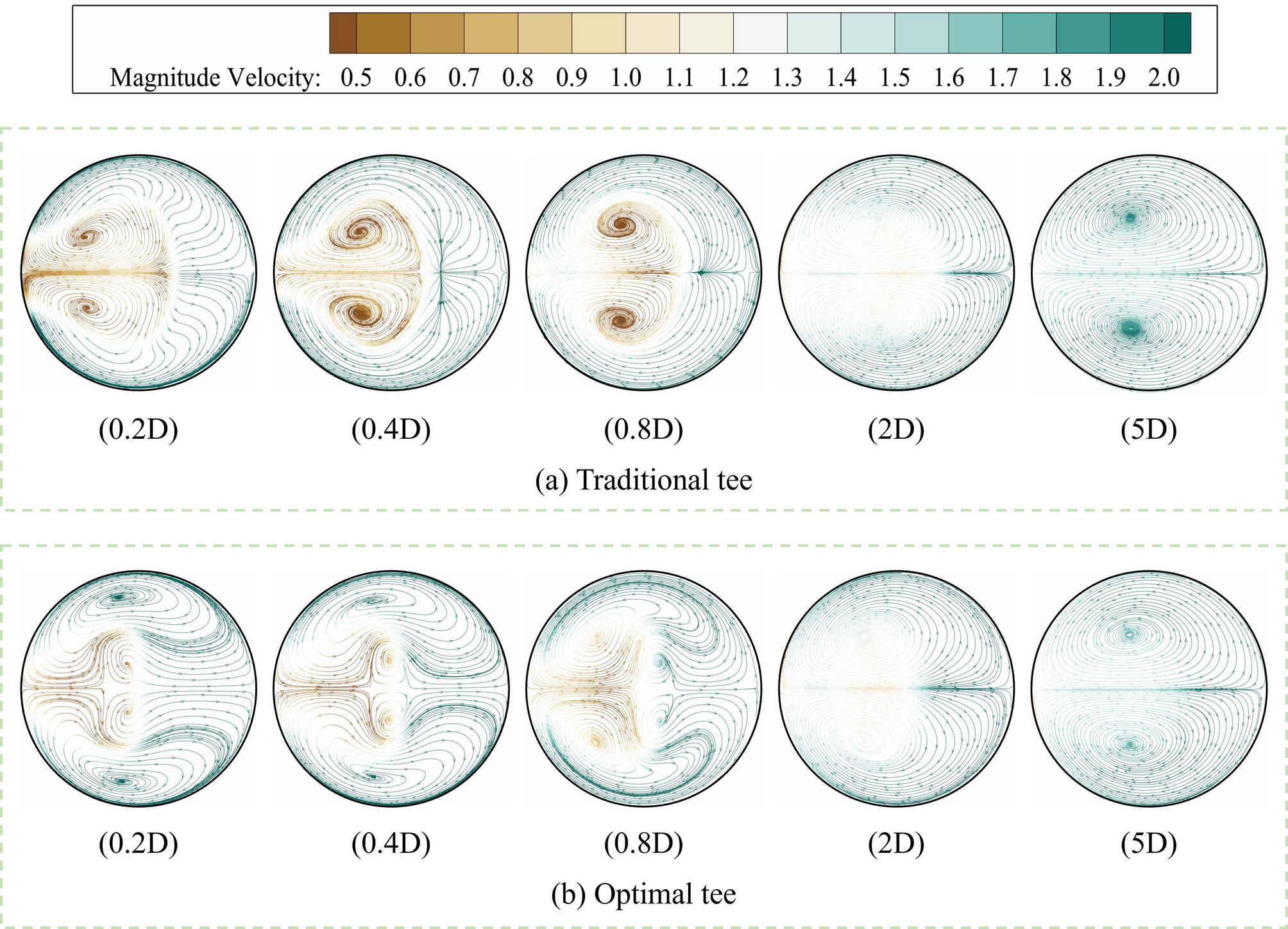

Fig. 13
From: A low resistance circular diverter tee based on an improved random forest model
Velocity vector distribution within 5 times the pipe diameter of the tee branch line; (a) velocity vector distribution of the traditional tee; (b) velocity vector distribution of the optimized tee.
