Fig. 4

From: Detailed three-dimensional fault model of the 2022 Mw 6.6 Luding earthquake reveals seismic hazard potential in the southeastern Tibetan plateau

Fig. 4

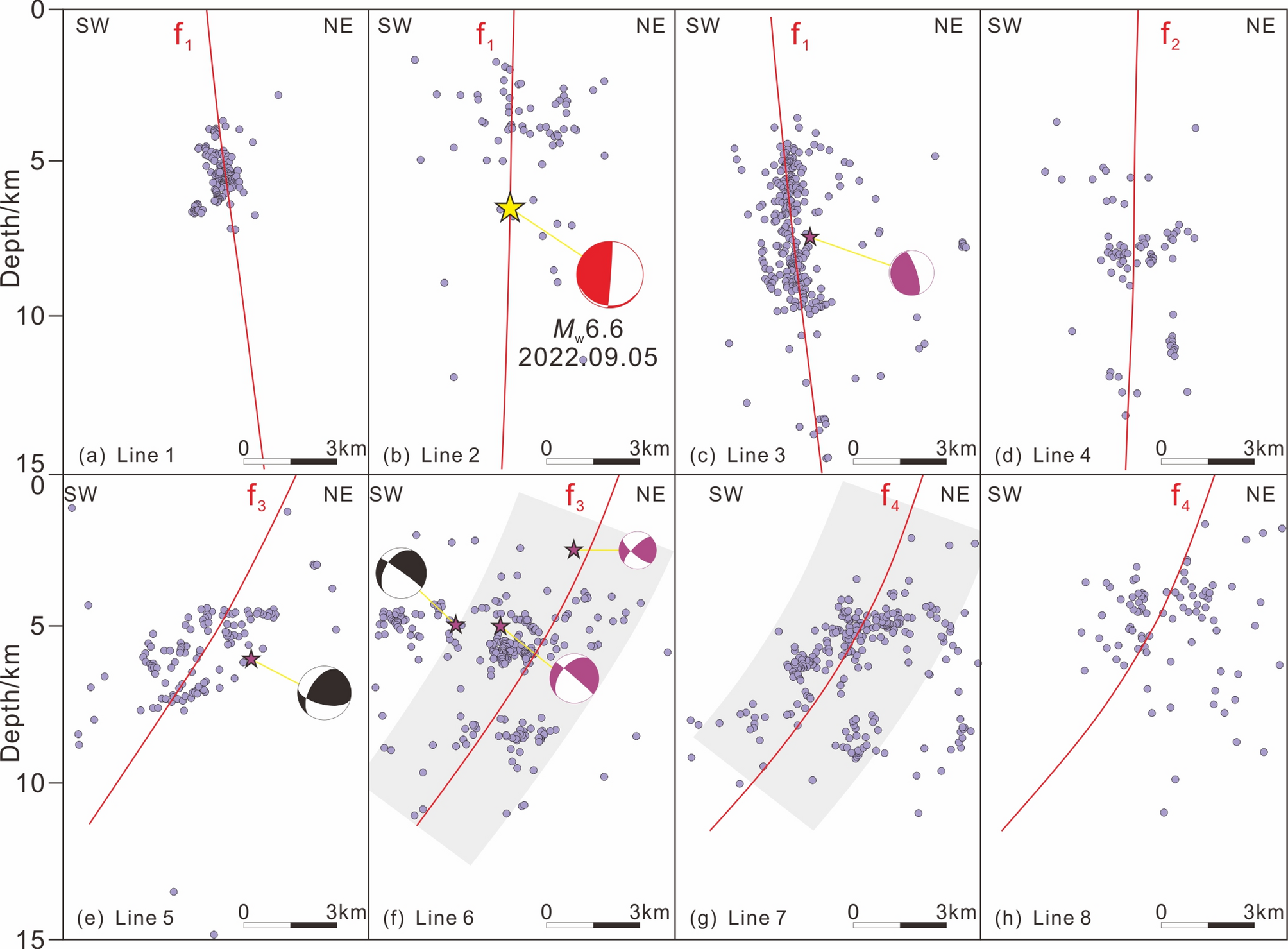

Eight representative depth profiles of vertically-oriented earthquake clusters, lateral aftershock projection, and interpreted fault traces. (a-c) Lines 1–3 are perpendicular to the Moxi segment of the XSHF (f1), and (d) Line 4 is perpendicular to the Daduhe fault (f2). Aftershocks within a 2 km range on both sides of the profiles are projected on the diagrams. (e-h) Lines 5–6 and 7–8 are perpendicular to two newly identified faults, f3 and f4, to the west of the mainshock. Aftershocks within a 1.5 km range on both sides of the profiles are projected on the diagrams. The gray areas represent the data range, and the red lines represent the fault traces on the profiles. Figure were generated using SKUA-GOCAD 2017 (https://www.aspentech.com/en/products/sse/aspen-skua) and CorelDRAW Standard 2024 (https://www.coreldraw.com/en/product/coreldraw/standard/).
