Fig. 5 | Scientific Reports

Fig. 5

From: Exploring a circulating circRNA and miRNA biomarker panel for early detection of ovarian cancer through multiple omics analysis

Fig. 5

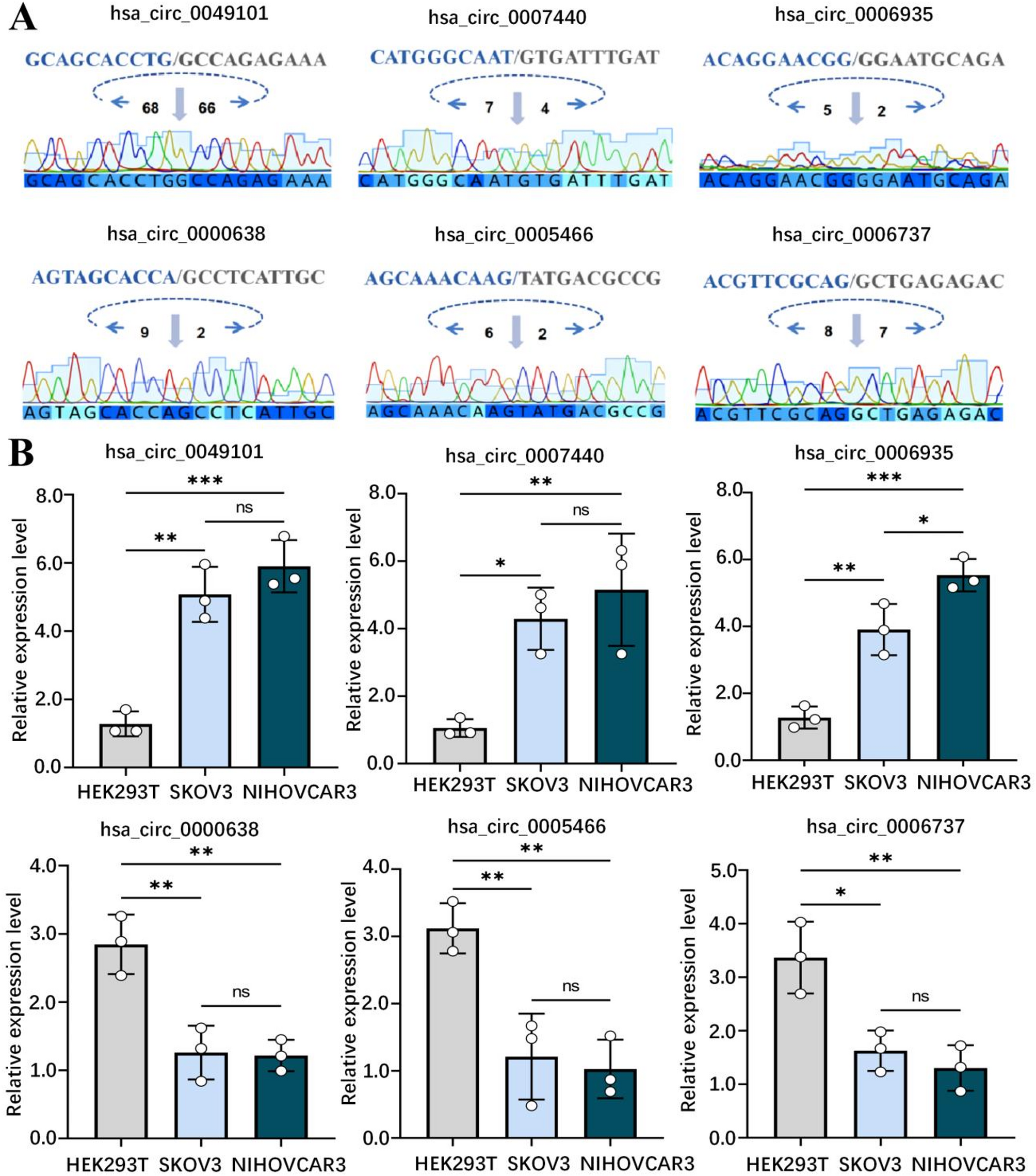

Identification of the expression of candidate circRNAs and miRNAs in cultured cells. (A) Sanger sequencing of qRT-PCR products for six differentially expressed circRNAs (DECs), including detailed information on the circRNAs and the back-splicing junction sites of their PCR products. (B) comparison of relative expression levels of six circRNAs between control cell HEK293T, and ovarian cancer cell SKOV3, NIHOVCAR3, ***P-value < 0.001, **P-value < 0.01, *P-value < 0.05, ns (not significant).
